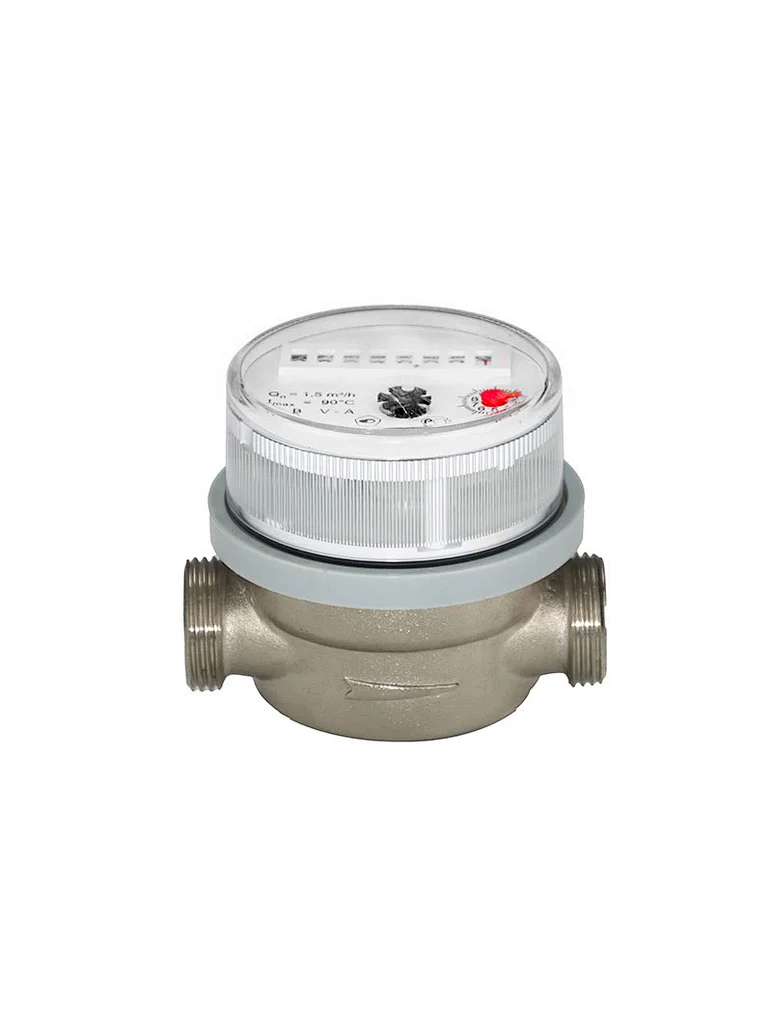

80mm Singe Jet Dry Type Vane Wheel Water Meter

Model NO. SJ-D-B2

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

This water meter uses a magnetic transmission to connect the counting mechanism and the testing mechanism. It is small in size and light in weight. The counter can rotate freely 360 degrees for easy reading. The water meter has anti-magnetic function, which can keep the reading clear for a long time. Compact structure, high counting accuracy, small starting flow, beautiful appearance and reliable operation.

Quantity

80mm Singe Jet Dry Type Vane Wheel Water Meter

Product introduction

This advanced water meter operates silently and smoothly without making any noise, thanks to its sophisticated magnetic transmission system. The device has been engineered with precision to ensure accurate water measurement, even at low flow rates. Its compact and lightweight design makes it easy to install, and the 360-degree rotating counter allows for effortless reading from any angle. Moreover, the anti-magnetic feature of the water meter prevents any interference from external magnetic fields, ensuring clear and reliable readings over an extended period. Overall, this water meter is not only functional and reliable but also aesthetically pleasing, with its sleek and attractive appearance.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	80/110	65	67	G3/4B
20	130	65	67	G1B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.63
20	5	4	80	80	50
			100	64	40
			125	51.2	30
			160	40	25
