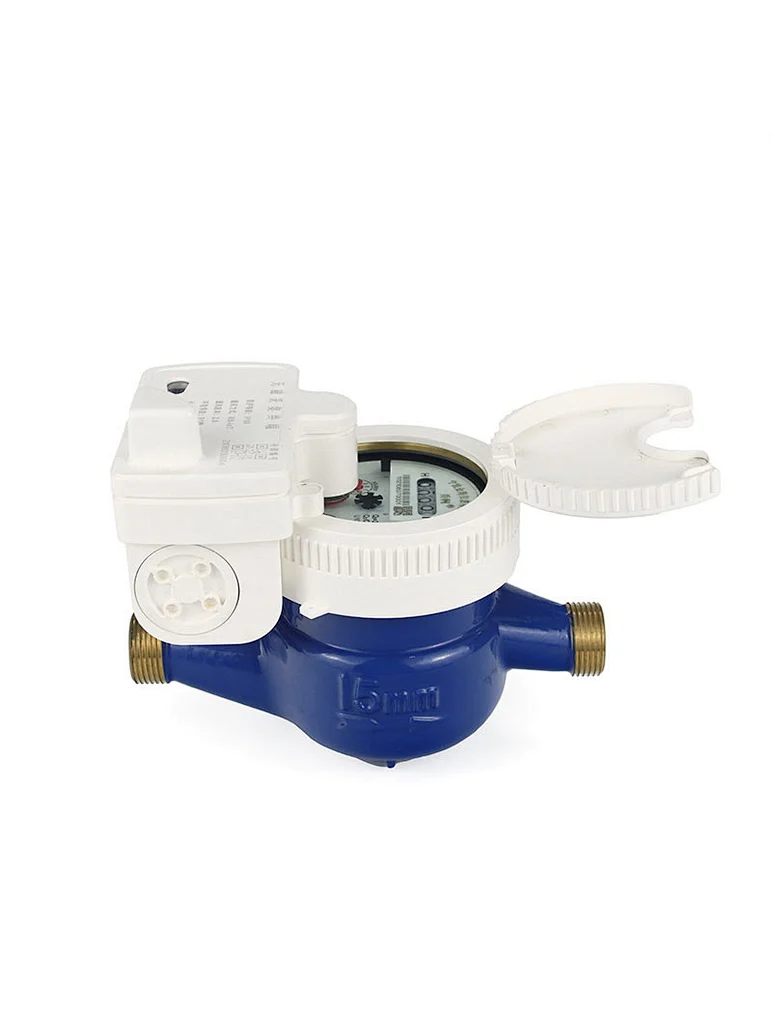

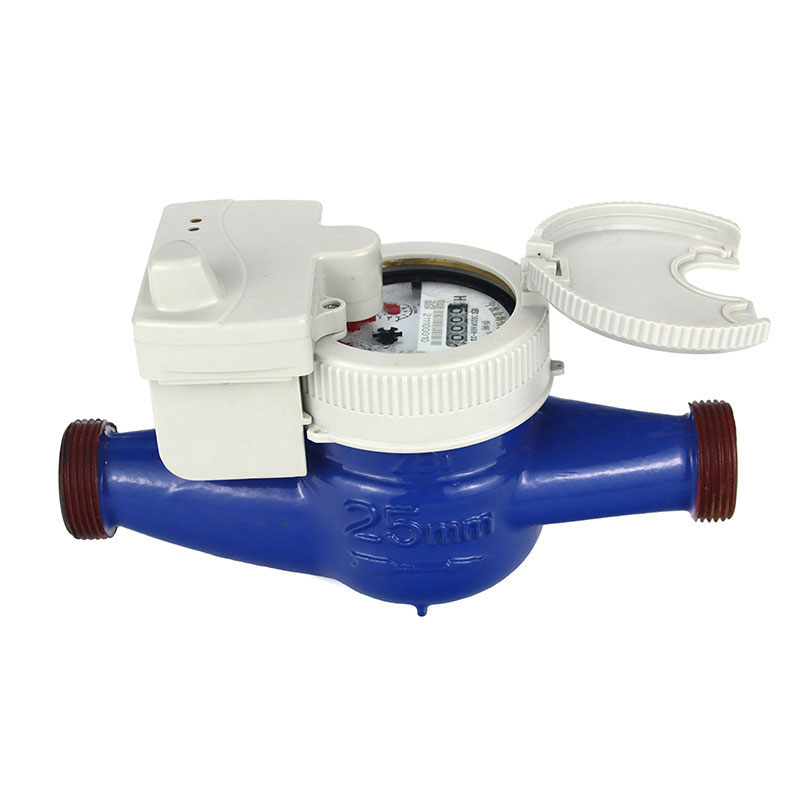

Multi Jet Wet Type Liquid Sealed Intelligent Model 1 Brass Water Meter
SM-MJ-L-B1
FOB
3000set / Day
Ningbo
30Day
An advanced multi-stream technology counter, with digit wheels encapsulated in a special liquid for clear readings. The high-quality mechanism is made from durable materials, with stable and reliable performance that can be externally adjusted (sealed). The casing can be copper, cast iron, or plastic/stainless steel (spray painted), and the wireless module and base meter are designed as separate units for easy plug-and-play use.
Quantity
Multi Jet Wet Type Liquid Sealed Intelligent Model 1 Brass Water Meter
Product introduction
This advanced multi-stream technology counter is designed to function as a high-precision water meter, with digit wheels that are encapsulated in a special liquid to ensure clear and accurate readings. The yoke installation of this water meter is specifically designed for stable and reliable performance, with a mechanism that is made from durable materials that can be externally adjusted and sealed for added convenience and efficiency.
The casing of the water meter can be made from a range of materials, including copper, cast iron, or plastic/stainless steel (spray painted) to suit different installation requirements and environments. Additionally, the wireless module and base meter are designed as separate units, which allows for easy plug-and-play use and flexibility in installation.
Overall, this water meter is a highly advanced and reliable solution that is ideal for a range of different applications, including industrial and commercial settings where accurate measurement and monitoring of water usage is critical. With its advanced multi-stream technology, high-quality mechanism, and durable construction, this water meter is sure to provide reliable and accurate performance for years to come.
This advanced multi-stream technology counter is designed to function as a high-precision water meter, with digit wheels that are encapsulated in a special liquid to ensure clear and accurate readings. The yoke installation of this water meter is specifically designed for stable and reliable performance, with a mechanism that is made from durable materials that can be externally adjusted and sealed for added convenience and efficiency.
The casing of the water meter can be made from a range of materials, including copper, cast iron, or plastic/stainless steel (spray painted) to suit different installation requirements and environments. Additionally, the wireless module and base meter are designed as separate units, which allows for easy plug-and-play use and flexibility in installation.
Overall, this water meter is a highly advanced and reliable solution that is ideal for a range of different applications, including industrial and commercial settings where accurate measurement and monitoring of water usage is critical. With its advanced multi-stream technology, high-quality mechanism, and durable construction, this water meter is sure to provide reliable and accurate performance for years to come.
Product parameters
Size (mm) | Length (mm) L | Width (mm) w | Height (mm) H | Connecting Thread D |
15 | 165 | 95 | 138 | G 3/4B |
20 | 190 | 95 | 138 | G 1B |
25 | 225 | 100 | 150 | G1 1/4B |
40 | 245 | 125 | 180 | G 2B |
Nominal Size DN(mm) | Overload Flow-rate qs(m3/h) | Permanent Flow-rate qp(m3/h) | Q3/Q1 | Transitional Flow-rate qt(l/h) | Minimum Flow-rate qmin(l/h) |
15 | 3.125 | 2.5 | 80 | 50 | 31.25 |
100 | 40 | 25 | |||
125 | 32 | 20 | |||
160 | 25 | 15.625 | |||
20 | 5 | 4 | 80 | 80 | 50 |
100 | 64 | 50 | |||
125 | 51.2 | 32 | |||
160 | 40 | 25 | |||
25 | 7.875 | 6.3 | 80 | 126 | 78.75 |
100 | 100.8 | 63 | |||
125 | 80.6 | 50.4 | |||
160 | 63 | 39.375 | |||
40 | 20 | 16 | 80 | 320 | 200 |
100 | 256 | 160 | |||
125 | 204.8 | 128 | |||
160 | 160 | 100 |
