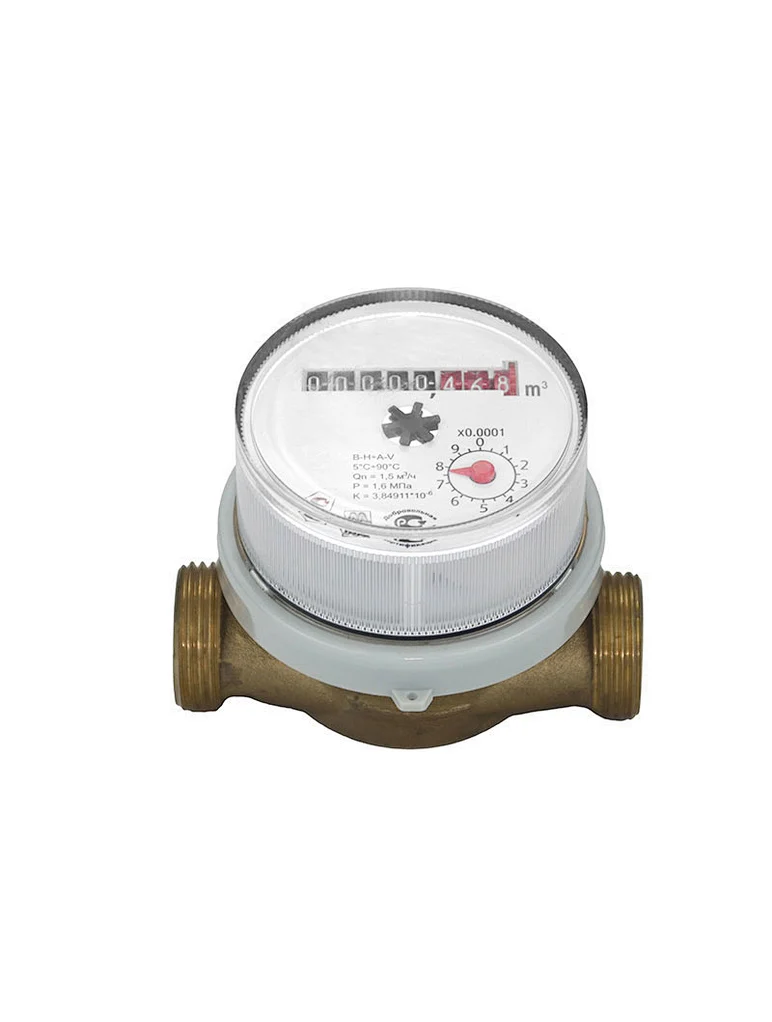

80mm Singe Jet Dry Type Vane Wheel Mini Model 2 Water Meter

Model NO. SJ-D-MI-B2S

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

This kind of water meter is small in size and light in weight. It uses magnetic transmission to realize the counting and testing mechanism. The counter can rotate freely at 360 degrees for easy reading. At the same time, the water meter has an antimagnetic function and can keep the reading clear for a long time. The water meter has compact structure, high counting accuracy, small starting flow, beautiful appearance and reliable operation.

Quantity

80mm Singe Jet Dry Type Vane Wheel Mini Model 2 Water Meter

Product introduction

This type of water meter consists of several important parts that work together to accurately measure water usage. These parts include the flow sensor, which is responsible for detecting the flow of water through the meter, the magnet, which transmits the signal from the flow sensor to the counter, and the counter itself, which records the amount of water that has passed through the meter.

Other essential water meter parts include the housing, which encloses and protects the internal components, the register, which displays the meter reading, and the valve, which controls the flow of water through the meter. In addition, some water meters may include additional features such as a strainer, which filters out debris and sediment from the water, and a backflow preventer, which prevents water from flowing back into the main supply.

Overall, these various water meter parts work in harmony to provide accurate and reliable measurements of water usage, helping both consumers and utilities to manage and conserve this vital resource.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	80/110	65	67	G3/4B
20	130	65	67	G1B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.63
20	5	4	80	80	50
			100	64	40
			125	51.2	30
			160	40	25
