Brass Volumetric Water Meter

Model NO. PS-BV

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

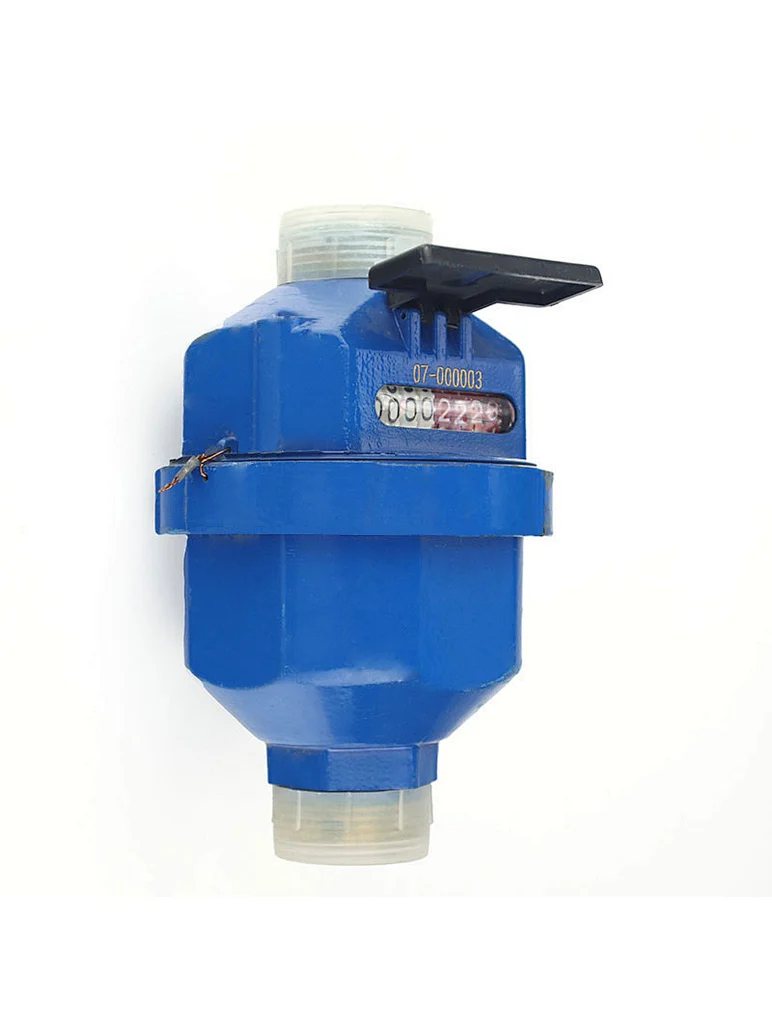

This water meter, commonly used in the Philippines, features a rotary piston metering structure that ensures high accuracy in measuring water consumption. Its clear reading display allows users to easily monitor their water usage. The counting mechanism of the meter is securely encapsulated with a special liquid, further enhancing its durability and performance. To prevent any backflow, the inlet of the meter is equipped with a reliable check valve.

Quantity

Brass Volumetric Water Meter

Product introduction

Moreover, this water meter can be customized to incorporate an electrical signal output, enabling remote meter reading. This feature facilitates convenient monitoring and data collection, particularly for utility companies or individuals who prefer remote management of their water consumption.

In summary, the water meter with its rotary piston metering structure, accurate reading display, and additional features like the encapsulated counting mechanism, check valve, and optional electrical signal output, provides an efficient solution for tracking water usage in the Philippines.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	115	91	91	G 3/4B
20	130	96	96	G 1B
25	170	112	112	G1 1/4B
32	260	140	140	G1 1/2B
40	300	174	174	G 2B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	160	25	15.6
			200	20	12.5
			250	16	10
			315	12.7	7.9
20	5	4	160	40	25
			200	32	20
			250	25.6	16
			315	20.3	12.7
25	7.875	6.3	160	63	39.4
			200	50.4	31.5
			250	40.3	25.2
			315	32	20
32	12.5	10	160	100	62.5
			200	80	50
			250	64	40
			315	50.8	31.7
40	20	16	160	160	100
			200	128	80
			250	102.4	64
			315	81.3	50.8
