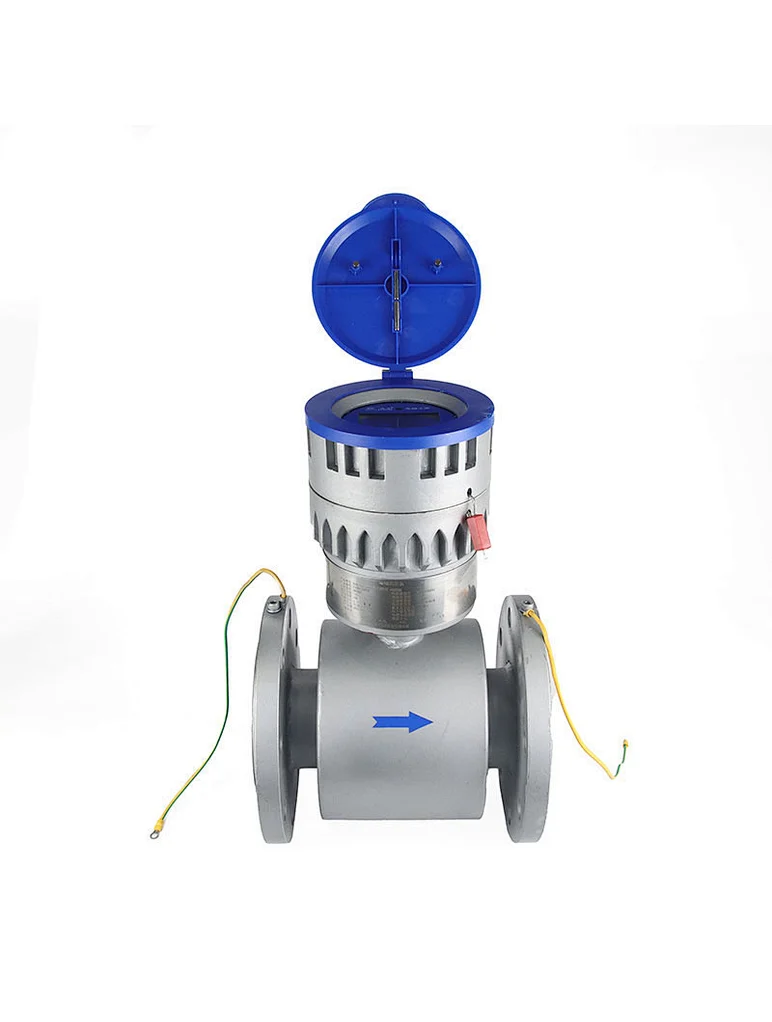

High Accuracy Electromagnetic Smart Water Meter

High Accuracy Electromagnetic Smart Water Meter

Model NO. WM-ET

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

High Accuracy Electromagnetic Smart Water Meters are highly accurate and reliable, and are commonly used in industrial and commercial applications where precise flow measurements are required. They are also preferred in situations where there is a risk of water contamination, as they do not require direct contact with the water and are therefore less likely to become contaminated or clogged.

Quantity

High Accuracy Electromagnetic Smart Water Meter

Product introduction

High Accuracy Electromagnetic Smart Water Meter is a specialized device designed specifically for the water industry, catering to the requirements of urban water supply and water resource management systems. Its primary purpose is to accurately measure water consumption and enable efficient zoning measurements for large customers. With a robust data storage capability, it ensures precise trade settlement. The meter finds extensive application in areas where on-site power supply is unavailable, including urban water supply networks, sewage treatment plants, and hydraulic engineering projects.

Key Features:

Low starting flow rate and exceptional ability to measure ultra-low water flow.
The meter's lining is constructed from environmentally friendly materials, making it suitable for measuring drinking water.
The absence of mechanical moving parts ensures reliable operation and longevity.
It supports both single and two-way measurement functions, allowing for flexible water flow monitoring.
The battery's service life exceeds four years, ensuring prolonged usage without frequent replacements.

Product parameters

Size (mm)	Length (mm) L	Height (mm) H	Connecting Thread C mm
40	200	365	150
50	200	375	165
65	200	390	185
80	200	405	200
100	250	425	220
125	250	445	250
150	300	480	285
200	350	525	340
250	400	590	395
300	450	635	445

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(L/h)	Minimum Flow-rate qmin(L/h)
40	31.25	25	160	0.25	0.16
			250	0.16	0.1
			400	0.1	0.63
			630	0.063	0.04
50	50	40	160	0.4	0.25
			250	0.25	0.16
			400	0.16	0.1
			630	0.1	0.063
65	78.75	63	160	0.63	0.4
			250	0.4	0.25
			400	0.25	0.16
			630	0.16	0.1
80	125	100	160	1	0.63
			250	0.63	0.4
			400	0.4	0.25
			630	0.25	0.16
100	200	160	160	1.6	1
			250	1	0.63
			400	0.63	0.4
			630	0.4	0.25
125	312.5	250	160	2.5	1.6
			250	1.6	1
			400	1	0.63
			630	0.63	0.4
150	500	400	160	6.3	4
			250	4	2.5
			400	2.5	1.6
			630	1	0.63
200	787.5	630	160	6.3	4
			250	4	2.5
			400	2.5	1.6
			630	1.6	1
250	1250	1000	160	10	6.3
			250	6.3	4
			400	4	2.5
			630	2.5	1.6
300	2000	600	160	16	10
			250	10	6.3
			400	6.3	4
			630	4	2.5
