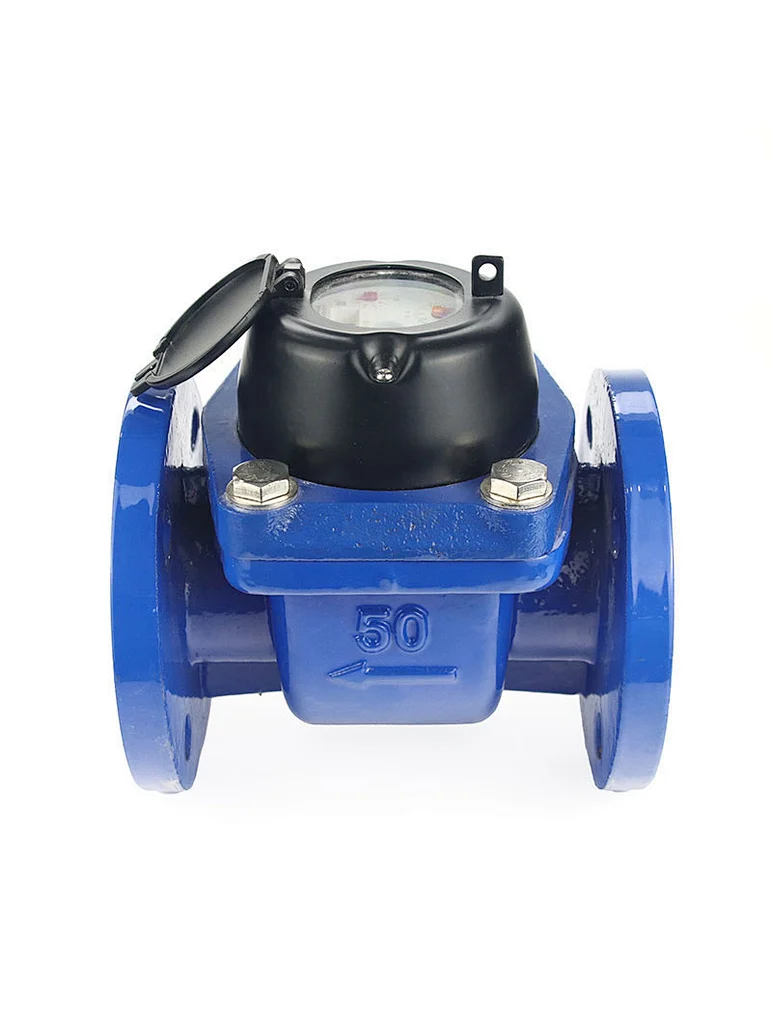

Horizontal Spiral Wing Detachable Removable Woltman Water Meter

Model NO. WT-H1

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

Our counter utilizes a dry magnetic transmission structure that ensures neat and clear display. It also features high flow capacity, low pressure loss, and stable performance curves to make your work easier. The measuring core is replaceable and easy to disassemble. We use stainless steel fasteners and epoxy powder-coated housing, both inside and outside, to maximize rust prevention and extend the product's lifespan.

Quantity

Horizontal Spiral Wing Detachable Removable Woltman Water Meter

Product introduction

When performing a horizontal installation, an additional water filter is required to ensure the purity of the water. Additionally, the inlet/outlet of the water meter must have a straight pipe section to ensure smooth water flow.

Product parameters

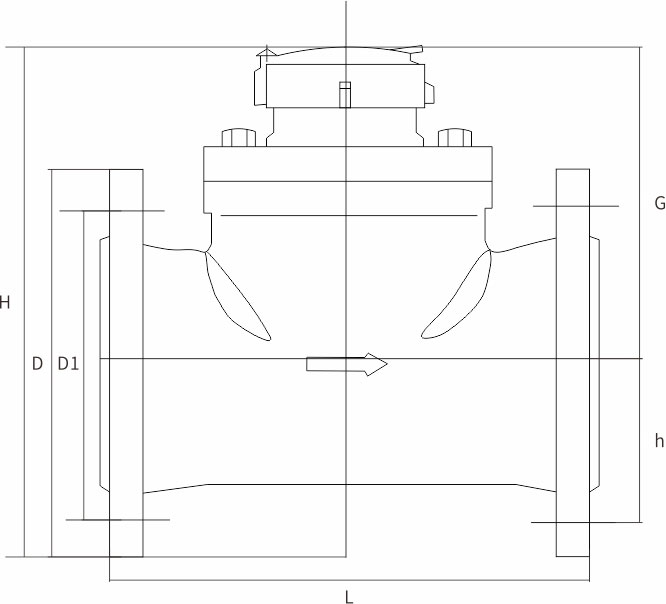

Size	Length L	Height			Flange
Size	Length L	G	H	h	D	D1
mm					mm
50	200	241	156	81	165	125
80	225	240	153	92	200	160
100	250	240	155	101	220	180
125	250	240.5	155.5	122.5	250	210
150	300	243	158	135	285	240
200	350	259	174	167	340	295

Nominal Size	Flow Range		Overload Flow-rate Q₄	Permanent Flow-rate Q₃	Transitional Flow-rate Q₂	Minimum Flow-rate Q₁	Min Reading	Max Reading
mm	Q₃Q₁	Q₂Q₁	m³/h		L/h		m³
50	100	1.6	50	40	0.64	0.4	0.005	99999
80	100	1.6	78.75	63	1.008	0.63	0.005	99999
100	100	1.6	125	100	1.6	1	0.005	99999
125	100	1.6	200	160	2.56	1.6	0.005	99999
150	100	1.6	312.5	250	4	2.5	0.005	99999
200	100	1.6	500	400	6.4	4	0.005	99999
