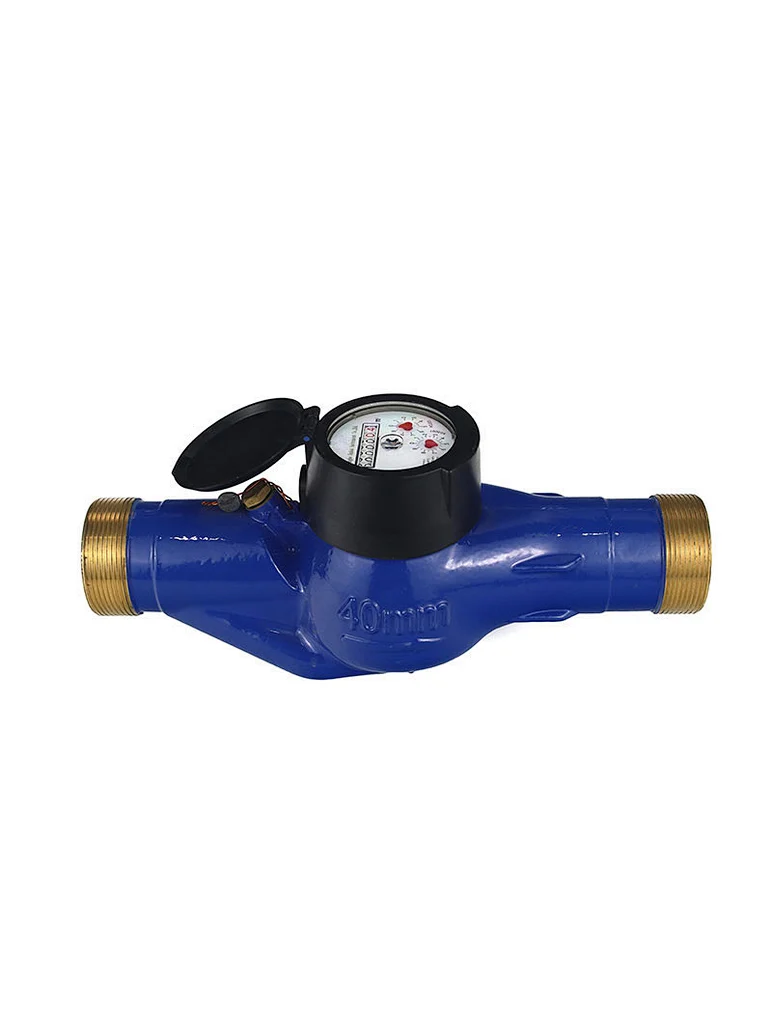

Multi Jet Dry Type Vane Wheel P Model Cold Water Meter

Model NO. MJ-D-BPOC

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

This water meter series adopts a dry design, with magnetic transmission connecting the impeller and counter. The numeral wheels and pointers combination allows for easy reading, and it has significant advantages such as clear display for long-term use, anti-freezing, and long service life. Additionally, we can add anti-external magnetic interference and remote pulse output functions according to customer demands to meet different customer requirements.

Quantity

Multi Jet Dry Type Vane Wheel P Model Cold Water Meter

Product introduction
The Multi Jet Dry Type Vane Wheel P Model Cold Water Meter is a state-of-the-art device that accurately measures water usage. It features a dry design, which means it does not require any external lubrication and can be installed in any orientation. The magnetic transmission between the impeller and counter ensures accurate measurement and eliminates any potential leakage.
The water meter also has a clear display, thanks to the numeral wheels and pointers combination, making it easy to read even after extended use. It is also designed to withstand extreme temperatures and prevent freezing.
Moreover, the water meter has a long service life, making it an excellent investment for any water utility company. It can also be customized with anti-external magnetic interference and remote pulse output functions according to customer requirements, making it highly versatile.
For added security and protection, the water meter can be installed in a water meter vault, providing an extra layer of protection against tampering or theft. Overall, the Multi Jet Dry Type Vane Wheel P Model Cold Water Meter is an excellent choice for any water utility company looking for a reliable, long-lasting, and customizable water meter solution.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	81	103	G 3/4B
20	195	81	103	G 1B
25	260	91	108	G 1/4B
32	260	91	110	G 1/2B
40	300	110	128	G 2B
50	300	110	128	G2 1/2B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
32	12.5	10	80	200	125
			100	160	100
			125	128	80
			160	100	62.5
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
50	31.25	25	80	500	312.5
			100	400	250
			125	320	200
			160	250	156.25
