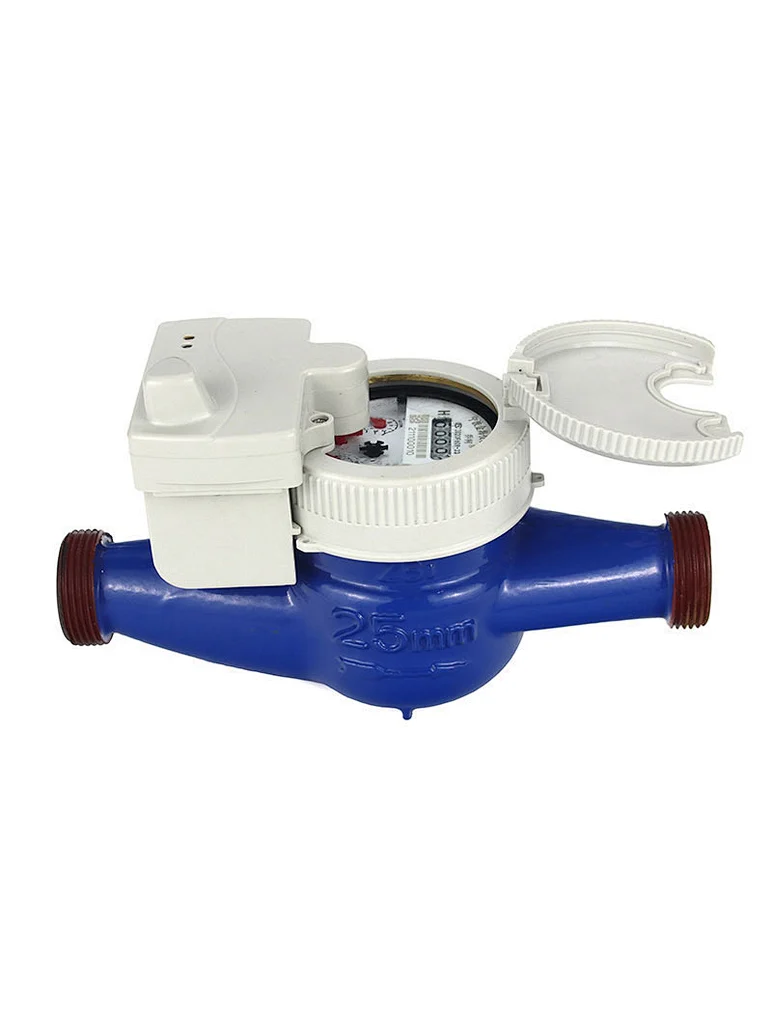

Multi Jet Wet Type Liquid Sealed Intelligent Model 1 Iron Water Meter

Model NO. SM-MJ-L-IR1

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

A high-precision multi-stream technology counter with specially encapsulated digit wheels, ensuring clear readings over a long period. The high-quality mechanism is made from durable materials, with stable and reliable performance that can be externally adjusted (sealed). The casing can be copper, cast iron, or plastic/stainless steel (spray painted), and the wireless module and base meter are designed as separate units for easy plug-and-play use.

Quantity

Multi Jet Wet Type Liquid Sealed Intelligent Model 1 Iron Water Meter

Product introduction

The high-precision multi-stream technology water meter is equipped with specially encapsulated digit wheels, which ensure clear readings over a long period of time. Additionally, the water meter is equipped with a sturdy barrel lock that provides an added layer of security against tampering. The high-quality mechanism is made from durable materials, such as copper, cast iron, or plastic/stainless steel (spray painted), ensuring stable and reliable performance. Moreover, the water meter can be externally adjusted and sealed, further enhancing its accuracy and reliability. The wireless module and base meter are designed as separate units for easy plug-and-play use, providing flexibility and convenience. Whether you need to monitor water usage in a commercial or residential setting, this water meter is an excellent choice that delivers accurate readings and long-term performance.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	95	138	G 3/4B
20	190	95	138	G 1B
25	225	100	150	G1 1/4B
40	245	125	180	G 2B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
