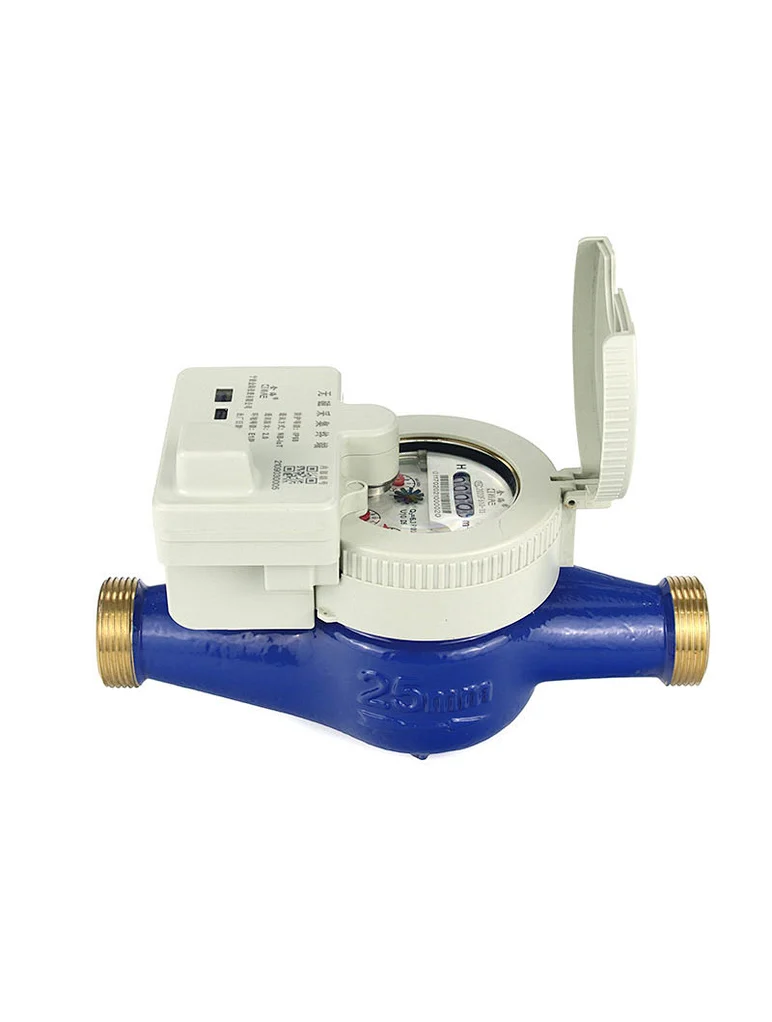

Multi Jet Wet Type Liquid Sealed Intelligent Model 2 Brass Water Meter

Model NO. SM-MJ-L-B2

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

An efficient multi-stream technology counter, with digit wheels specially encapsulated in a liquid for clear readings over a long period. The high-quality mechanism is made from durable materials, with stable and reliable performance that can be externally adjusted (sealed). The casing can be copper, cast iron, or plastic/stainless steel (spray painted), and the wireless module and base meter are designed as separate units for easy plug-and-play use.

Quantity

Multi Jet Wet Type Liquid Sealed Intelligent Model 2 Brass Water Meter

Product introduction

The efficient multi-stream technology counter, equipped with digit wheels specially encapsulated in a liquid for clear readings over a long period, is an ideal solution for accurately measuring water usage. Its high-quality mechanism is made from durable materials, ensuring stable and reliable performance that can be externally adjusted and sealed for added convenience.
To further enhance its functionality, the counter comes with a tailpiece that allows it to be easily connected to a water meter, providing accurate readings of water usage. The tailpiece can be made from copper, cast iron, or plastic/stainless steel (spray painted), depending on the specific needs and requirements of the application.
Moreover, the counter features a wireless module and base meter that are designed as separate units for easy plug-and-play use. This allows for seamless integration with existing water meter systems, making it a cost-effective and practical solution for water usage monitoring.
Overall, the efficient multi-stream technology counter with its durable materials, clear readings, and easy installation is an ideal choice for accurately measuring water usage in a variety of settings.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	95	138	G 3/4B
20	190	95	138	G 1B
25	225	100	150	G1 1/4B
40	245	125	180	G 2B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
