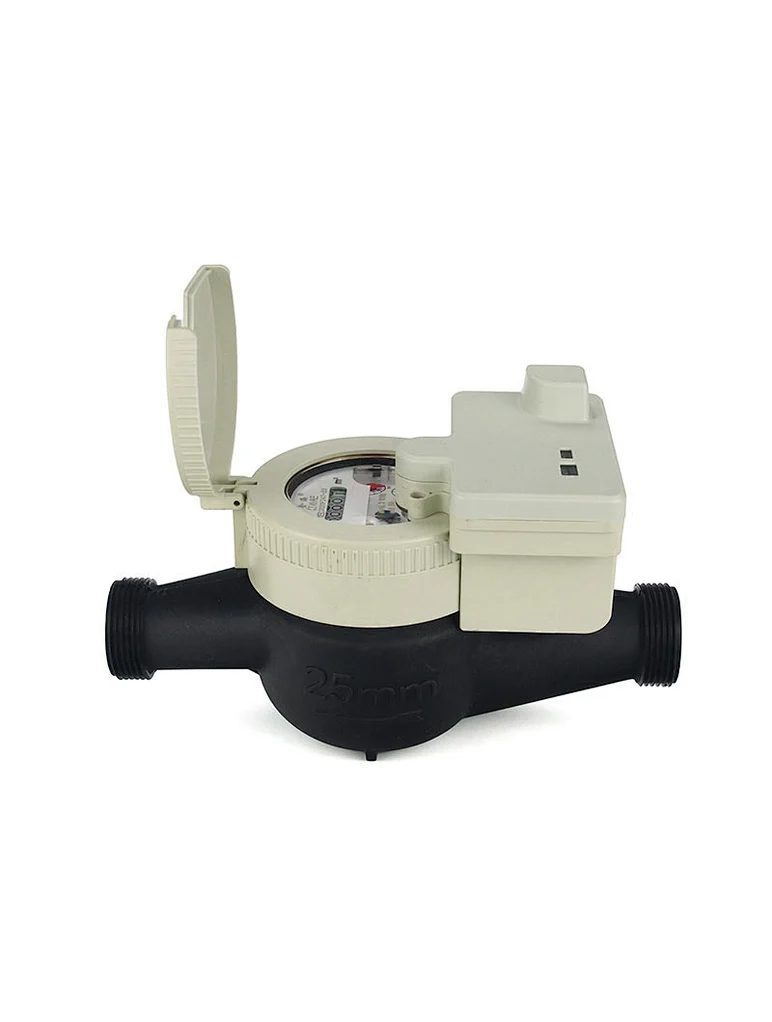

Multi Jet Wet Type Liquid Sealed Intelligent Model 2 Plastic Water Meter

Model NO. SM-MJ-L-PL2

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

Install a high-precision counter with multi-flow technology, with the digital wheels encapsulated in a special liquid to maintain clear readings for a long time. The mechanism uses high-quality materials for reliable performance and long lifespan, and can be externally adjusted and sealed. Choose between a copper or cast iron casing, or a plastic or stainless steel casing that can be spray-painted. The wireless module and base table adopt a split-type structure for easy plug-and-play use.

Quantity

Multi Jet Wet Type Liquid Sealed Intelligent Model 2 Plastic Water Meter

Product introduction

If you're looking to install a high-precision counter with multi-flow technology for measuring water consumption inside your house, you may want to consider some of the options available. For instance, you could choose a water meter that has digital wheels encapsulated in a special liquid, which would help to maintain clear readings over time. This would be especially helpful if you want to monitor your water usage accurately and efficiently.

The mechanism of such a water meter would be designed with high-quality materials, ensuring reliable performance and a long lifespan. Additionally, the meter could be externally adjusted and sealed, making it easy to maintain and operate. Depending on your preferences, you could choose between a copper or cast iron casing, which would provide a classic look, or a plastic or stainless steel casing that could be spray-painted to match your decor.

The wireless module and base table of the water meter could be designed with a split-type structure, making it easy to plug-and-play. This would be particularly helpful if you wanted to install the water meter yourself without having to hire a professional. With its high precision and multi-flow technology, this water meter would be an excellent addition to your home, helping you to manage your water usage effectively and efficiently.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	95	138	G 3/4B
20	190	95	138	G 1B
25	225	100	150	G1 1/4B
40	245	125	180	G 2B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
