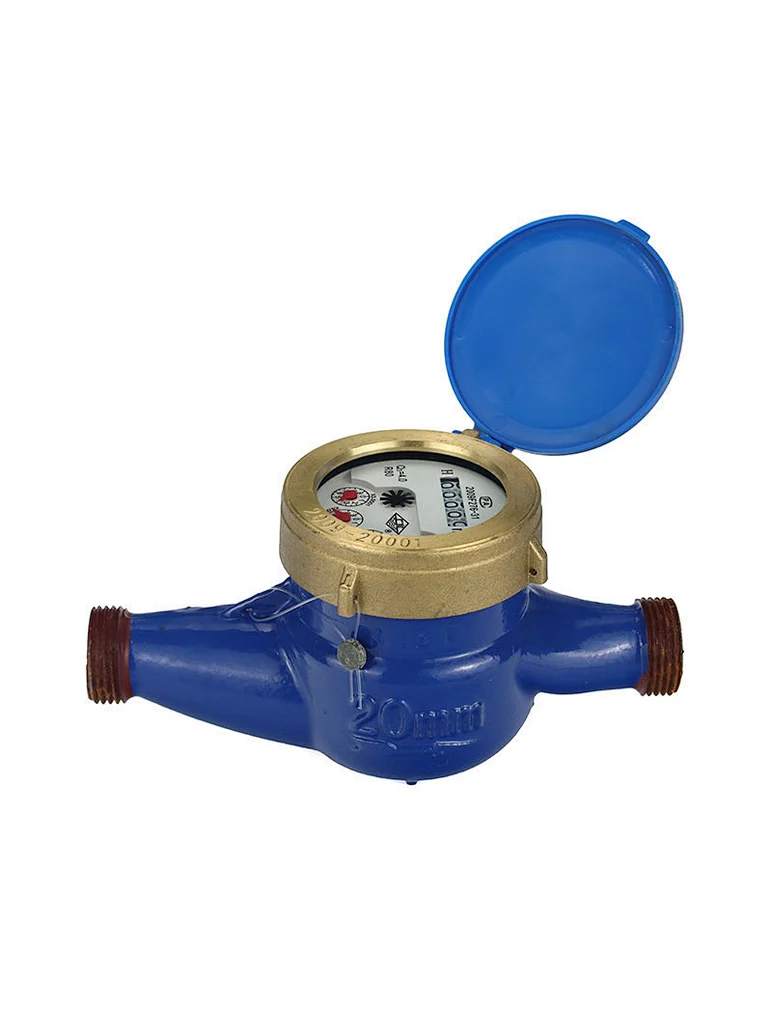

Multi Jet Wet Type Liquid Sealed Vane Wheel Iron Water Meter

Multi Jet Wet Type Liquid Sealed Vane Wheel Iron Water Meter

Model NO. MJ-L-IR1

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

The counting mechanism of this water meter is packaged with special liquid, and the design of the pointer counting deceleration part is compact. Water supply network use.

Quantity

Multi Jet Wet Type Liquid Sealed Vane Wheel Iron Water Meter

Product introduction

The counting mechanism of both 3/4 inch and 1 inch water meters is typically packaged with a special liquid to ensure accurate measurement of water usage. However, the design of the pointer counting deceleration part may vary depending on the size of the meter. The 3/4 inch water meter is generally more compact than the 1 inch water meter, making it a popular choice for residential water supply networks. On the other hand, the 1 inch water meter is often used in larger commercial or industrial water supply networks where higher flow rates are required. Regardless of the size, water meters are an important tool for monitoring and managing water usage, helping to conserve this precious resource and reduce waste.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	94	112.5	G 3/4B
20	195	94	104	G 1B
25	225	98	124	G1 1/4B
32	230	98	124	G1 1/2B
40	245	124	154	G 2B
50	280	165	179	GB/T17241.6-2008 D=Φ165 D1=Φ125

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
32	12.5	10	80	200	125
			100	160	100
			125	128	80
			160	100	62.5
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
50	31.25	25	80	500	312.5
			100	400	250
			125	320	200
			160	250	156.25
