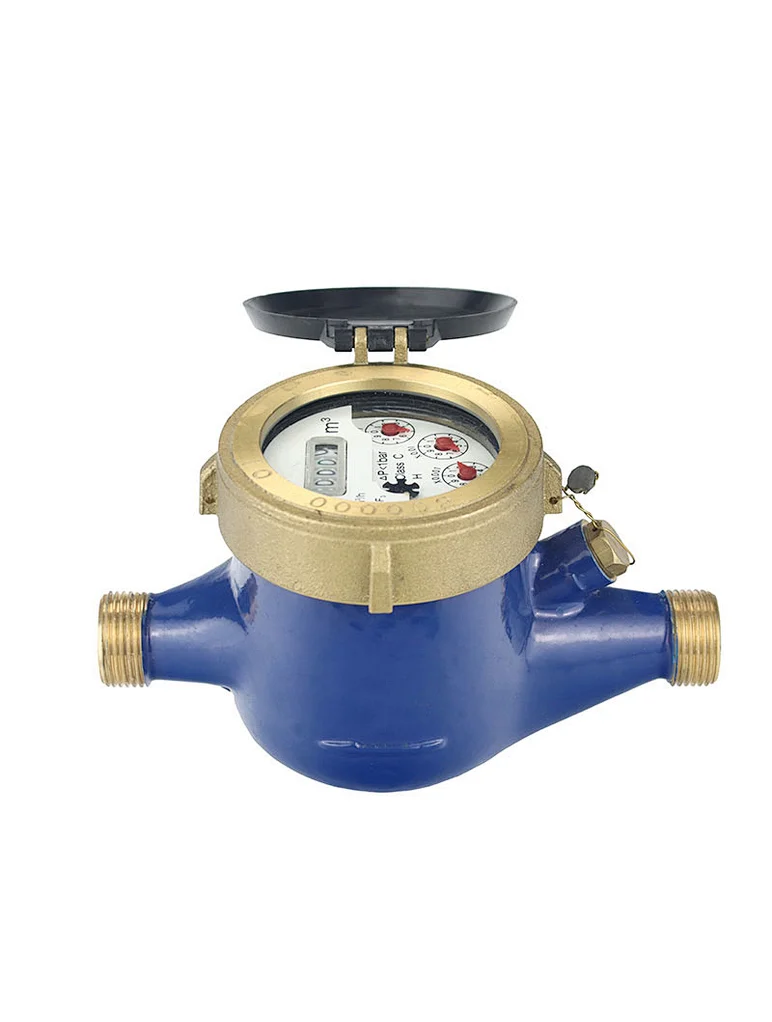

Multi Jet Wet Type Liquid Sealed Vane Wheel Model 2 Brass Water Meter

Model NO. MJ-L-B2

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

Special wear-resistant materials and high-precision counting mechanism enable the pointer counting deceleration part of this water meter to maintain full water for a long time, with high measurement accuracy, small initial flow, good anti-fouling, convenient reading, reliable operation, and beautiful appearance , is an ideal choice for domestic water supply networks.

Quantity

Multi Jet Wet Type Liquid Sealed Vane Wheel Model 2 Brass Water Meter

Product introduction

The water meter connection plays a crucial role in the domestic water supply network by providing a stable and secure connection for an extended period. It incorporates special wear-resistant materials in the pointer counting deceleration part to ensure durability. With its high-precision counting mechanism, the connection accurately measures the amount of water flowing through it. Additionally, it features excellent anti-fouling properties and a small initial flow, making it highly reliable and efficient for measuring water usage in households. Its convenient reading and aesthetically pleasing design further enhance its appeal. Overall, the water meter connection is an indispensable component of the domestic water supply network, offering an ideal solution for accurate and dependable water measurement.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	94	112.5	G 3/4B
20	195	94	104	G 1B
25	225	98	124	G1 1/4B
32	230	98	124	G1 1/2B
40	245	124	154	G 2B
50	280	165	179	GB/T17241.6-2008 D=Φ165 D1=Φ125

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
32	12.5	10	80	200	125
			100	160	100
			125	128	80
			160	100	62.5
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
50	31.25	25	80	500	312.5
			100	400	250
			125	320	200
			160	250	156.25
