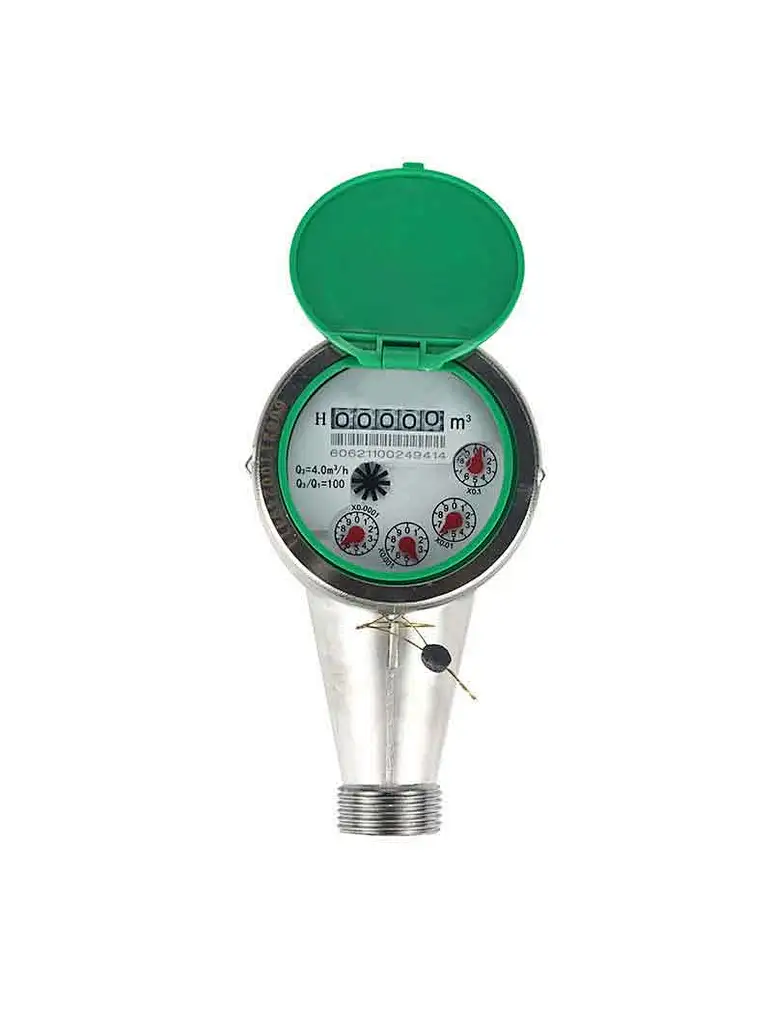

Multi Jet Wet Type Liquid Sealed Vane Wheel SS Water Meter

Model NO. MJ-L-SS

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

The counting mechanism of this water meter is packaged with special liquid. The design of the pointer counting deceleration part is compact, the measurement accuracy is high, the starting flow is small, the reading is convenient, the work is reliable, and the appearance is beautiful. It is very suitable for use on the domestic water supply network.

Quantity

Multi Jet Wet Type Liquid Sealed Vane Wheel SS Water Meter

Product introduction

The counting mechanism of this water meter is designed with a special liquid insulation, which helps to ensure that the measurement accuracy is not affected by changes in temperature and humidity. This insulation also helps to protect the internal components of the meter from damage caused by exposure to water and other environmental factors.
The pointer counting deceleration part of the meter is engineered to be compact, which means that it can fit easily into tight spaces and is ideal for use in homes with limited plumbing infrastructure. The meter is also designed to have a small starting flow, which allows it to accurately measure even very low levels of water consumption.
The reading process for this water meter is both convenient and reliable. The meter is equipped with clear and easy-to-read displays, which allow homeowners to quickly and accurately track their water usage over time. Additionally, the meter is designed to be highly durable and long-lasting, which means that it will continue to provide accurate readings over many years of use.
Finally, the water meter has a sleek and modern appearance that is sure to complement any home's décor. Its compact design and high level of accuracy make it an ideal choice for use on the domestic water supply network, helping homeowners to manage their water consumption and keep their utility bills under control.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	94	112.5	G 3/4B
20	195	94	104	G 1B
25	225	98	124	G1 1/4B
32	230	98	124	G1 1/2B
40	245	124	154	G 2B
50	280	165	179	GB/T17241.6-2008 D=Φ165 D1=Φ125

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
32	12.5	10	80	200	125
			100	160	100
			125	128	80
			160	100	62.5
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
50	31.25	25	80	500	312.5
			100	400	250
			125	320	200
			160	250	156.25
