Rotor Dry Type Wireless Remote Smart Water Meter
SM-MJ-D-IR1
FOB
3000set / Day
Ningbo
30Day
This water meter is an instrument used for centralized management of water consumption, and it uses electromechanical conversion for non-magnetic counting.
Quantity

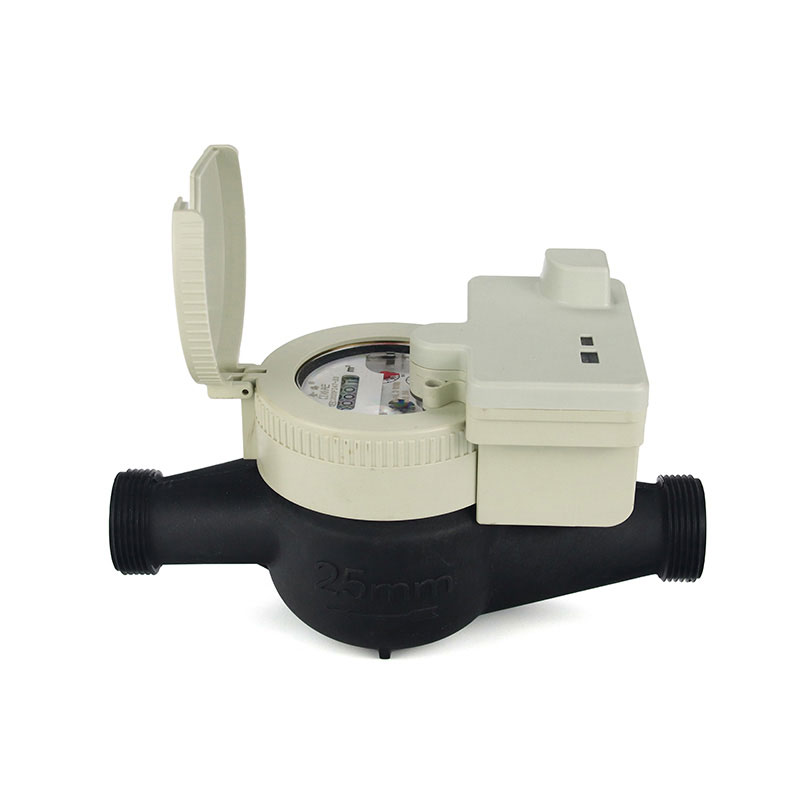

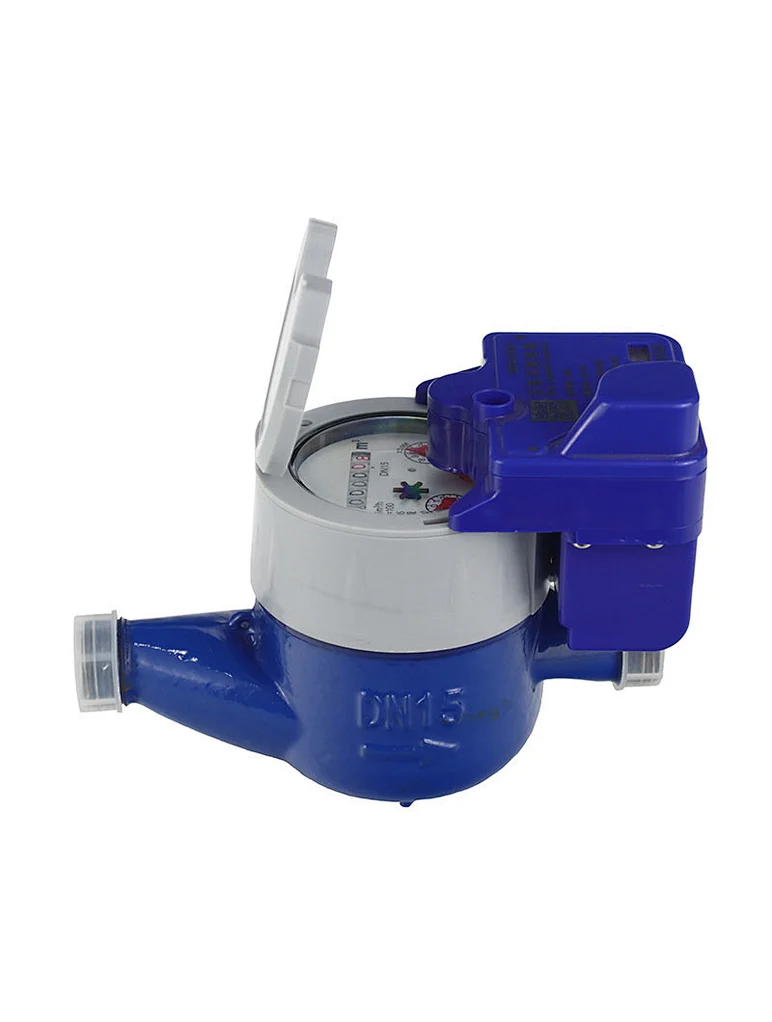

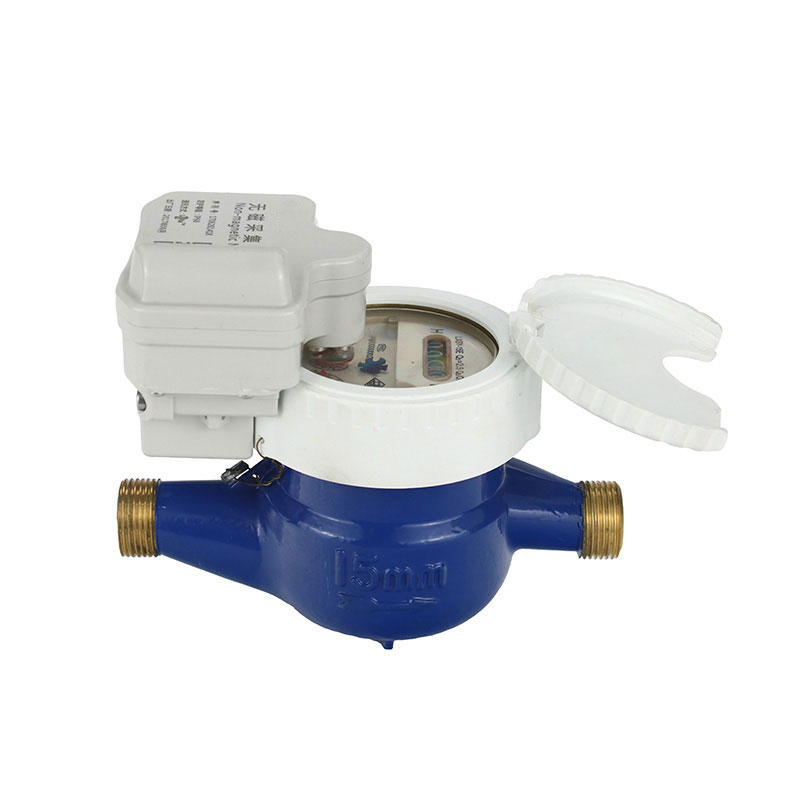

Rotor Dry Type Wireless Remote Smart Water Meter
Product introduction
1．This water meter is an instrument used for centralized management of water consumption, and it uses electromechanical conversion for non-magnetic counting.
2．The sending module and the basic meter are installed separately, which is easy to exchange; the power battery is packaged independently, which is convenient for battery replacement.
3．The latest NB-IoT and LoRa data transmission technologies are equipped with strong penetration capabilities.
4．Our communication device can be measured in either 1L or 10L increments depending on your needs. We offer high measurement accuracy to meet a variety of different requirements.
5．The communication module can be directly installed on the basic structure, which has a rotation function and can be conveniently installed in a low and accessible position.
5．The communication module can be directly installed on the basic structure, which has a rotation function and can be conveniently installed in a low and accessible position.
6．Independent function pointers are used in the base table, so even after installing electronic modules, the readings are not affected.
7．In order to avoid counting errors caused by water flow backflow and vibration during the use of the Faxon water meter, we use multiple sensors and specialized algorithms to ensure counting accuracy.
Product parameters

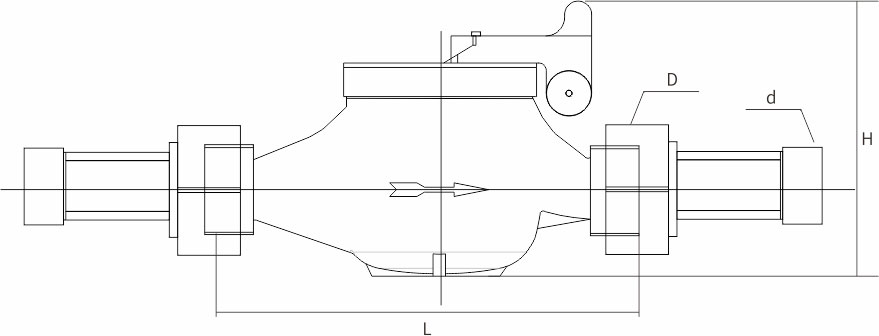

Size (mm) | Length (mm) L | Width (mm) w | Height (mm) H | Connecting Thread D |
15 | 165 | 94 | 136 | G 3/4B |
20 | 195 | 94 | 136 | G 1B |
25 | 225 | 103 | 150 | G1 1/4B |
Nominal Size DN(mm) | Overload Flow-rate qs(m3/h) | Permanent Flow-rate qp(m3/h) | Q3/Q1 | Transitional Flow-rate qt(l/h) | Minimum Flow-rate qmin(l/h) |
15 | 3.125 | 2.5 | 160 | 25 | 15.6 |
125 | 32 | 20 | |||
100 | 40 | 25 | |||
20 | 5 | 4 | 160 | 40 | 25 |
125 | 51.2 | 32 | |||
100 | 64 | 40 | |||
25 | 7.875 | 6.3 | 160 | 63 | 39.4 |
125 | 80.6 | 50.4 | |||
100 | 100.8 | 63 |
Kinhil is committed to R&D and production of various kinds of water meters, including accurate residential water meters,smart water meters,water meter collection system & solution,water meter accessories, etc.
Looking forward to cooperating with you! Contact sales to start your inquiry about Direct Read Water Meter，Electromagnetic Water Meter，Multi jet Wet Tpye Liquid Sealed Intelligent Water Meter，Rotor Dry Wireless Romote Water Meter，Valve Controlled Remote Intelligent Water Meter，etc. (0086) 574-87276559 or send an E-mail to us!
