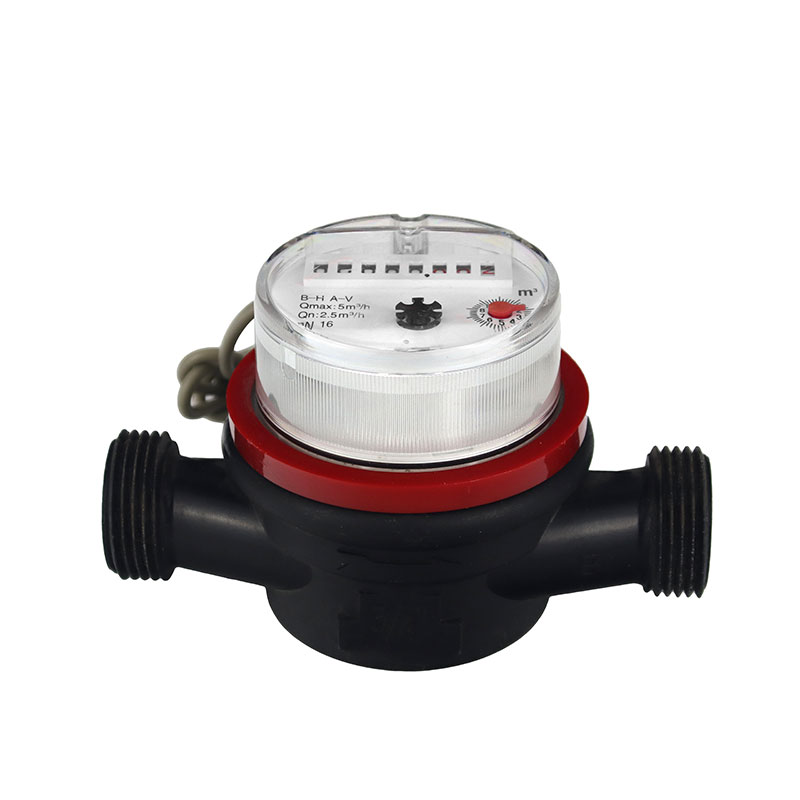

Singe Jet Dry Type Vane Wheel IT Model 2 Water Meter
SJ-D-BIT2
FOB
3000set / Day
Ningbo
30Day
This kind of water meter uses a magnetic transmission to connect the counting mechanism and the testing mechanism, and the counter has a 360-degree free rotation function for easy reading. The water meter is anti-magnetic, keeping the reading clear, high counting accuracy, small initial flow, beautiful appearance, reliable operation, small size, light weight, and very portable.
Quantity
Singe Jet Dry Type Vane Wheel IT Model 2 Water Meter
Product introduction
This type of water meter utilizes a magnetic transmission to link the counting mechanism and the testing mechanism, ensuring that the reading remains clear and immune to magnetic interference, even in high electromagnetic fields. The counter is equipped with a 360-degree free rotation feature, allowing for easy reading from any angle, while the anti-magnetic design ensures a high level of counting accuracy.
The meter also boasts a small initial flow, making it suitable for measuring low flow rates, and has a sleek and stylish appearance. It operates reliably, with a small size and light weight, making it very portable and easy to install. Unlike a gas meter, which typically makes a distinct sound when measuring gas flow, this water meter operates silently, with only the sound of running water indicating its use.
Product parameters
The meter also boasts a small initial flow, making it suitable for measuring low flow rates, and has a sleek and stylish appearance. It operates reliably, with a small size and light weight, making it very portable and easy to install. Unlike a gas meter, which typically makes a distinct sound when measuring gas flow, this water meter operates silently, with only the sound of running water indicating its use.
Product parameters

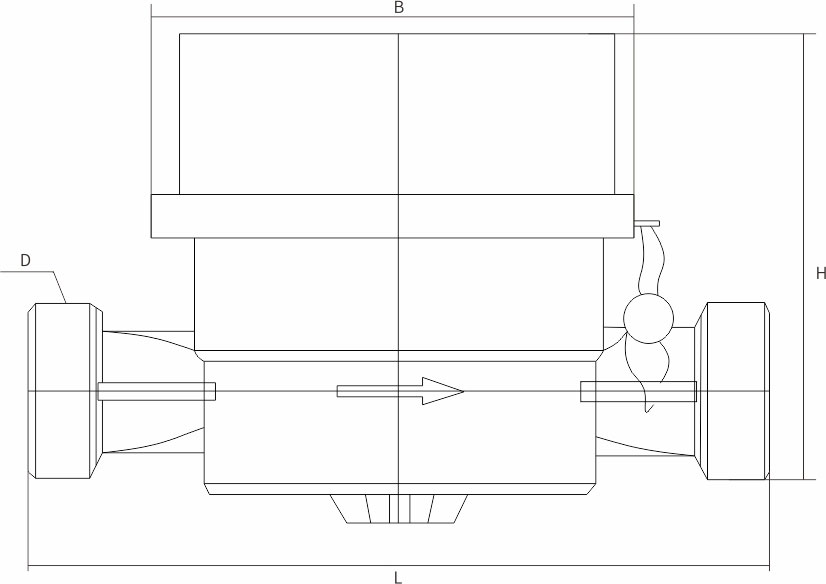

Size (mm) | Length (mm) L | Width (mm) w | Height (mm) H | Connecting Thread D |
15 | 80/110 | 70 | 70 | G3/4B |
20 | 130 | 70 | 70 | G1B |
Nominal Size DN(mm) | Overload Flow-rate qs(m3/h) | Permanent Flow-rate qp(m3/h) | Q3/Q1 | Transitional Flow-rate qt(l/h) | Minimum Flow-rate qmin(l/h) |
15 | 3.125 | 2.5 | 80 | 50 | 31.25 |
100 | 40 | 25 | |||
125 | 32 | 20 | |||
160 | 25 | 15.63 | |||
20 | 5 | 4 | 80 | 80 | 50 |
100 | 64 | 40 | |||
125 | 51.2 | 30 | |||
160 | 40 | 25 |
