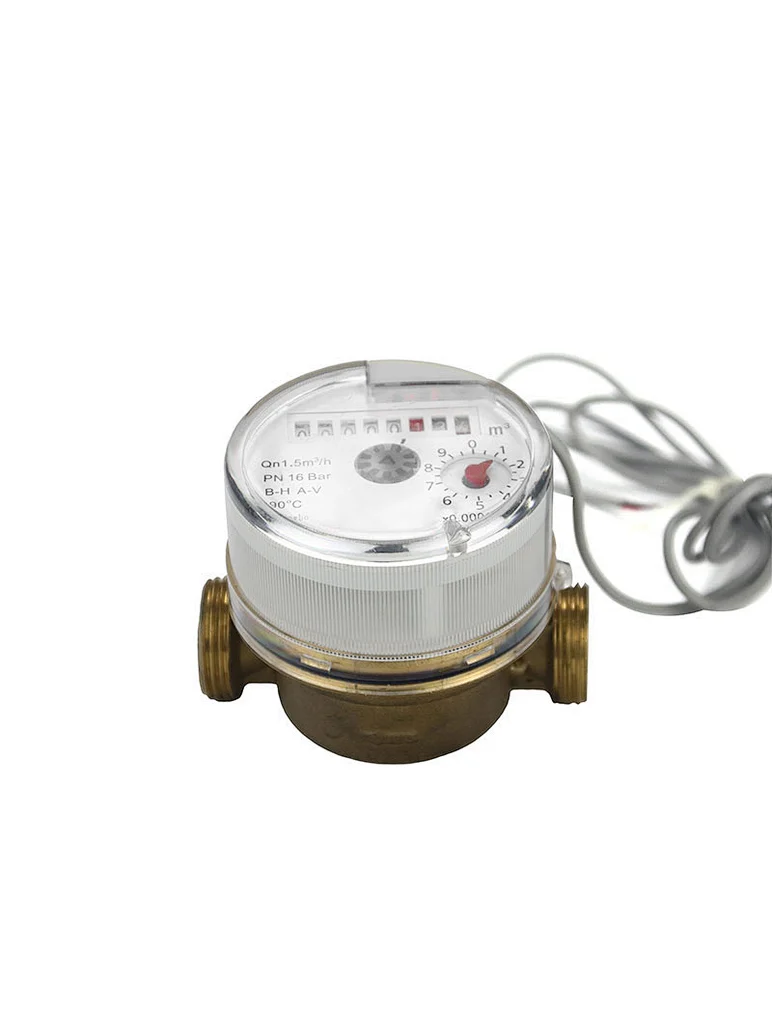

Singe Jet Dry Type Vane Wheel IT Model Remote With Impulse Output Water Meter

Model NO. SJ-DR-BIT1

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

This water sub meter is a specialized device that measures the amount of water consumed by a household or a building. Similar to a water meter, it is compact and lightweight, equipped with a counting mechanism and a testing mechanism that are connected through magnetic transmission. The counter of the water sub meter can freely rotate for 360 degrees, allowing users to conveniently read the measurements.

Quantity

Singe Jet Dry Type Vane Wheel IT Model Remote With Impulse Output Water Meter

Product introduction

The water sub meter is a specialized device designed to accurately measure water consumption in households or buildings. Its compact and lightweight design makes it easy to install and use. The meter is equipped with a counting mechanism and a testing mechanism connected through magnetic transmission, ensuring reliable and precise measurements.

One notable feature of this water sub meter is its anti-magnetic function, which guarantees clear and accurate readings over an extended period of time. This ensures that users can rely on the meter's accuracy and precision in measuring water usage. Additionally, the meter has a small starting flow, allowing it to accurately measure even the smallest amounts of water usage.

Not only does the water sub meter excel in functionality, but it also boasts an aesthetically pleasing appearance. Its compact structure enables it to be installed in various locations without detracting from the overall visual appeal. The design of the meter prioritizes long-lasting performance, assuring users of accurate measurements for an extended duration.

With its combination of reliability, precision, and visual appeal, the water sub meter is an excellent choice for accurately monitoring water consumption in households or buildings.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	80/110	70	70	G3/4B
20	130	70	70	G1B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.63
20	5	4	80	80	50
			100	64	40
			125	51.2	30
			160	40	25
