Singe Jet Dry Type Vane Wheel Mini Model 1 Water Meter
SJ-D-MI-B1
FOB
3000set / Day
Ningbo
30Day

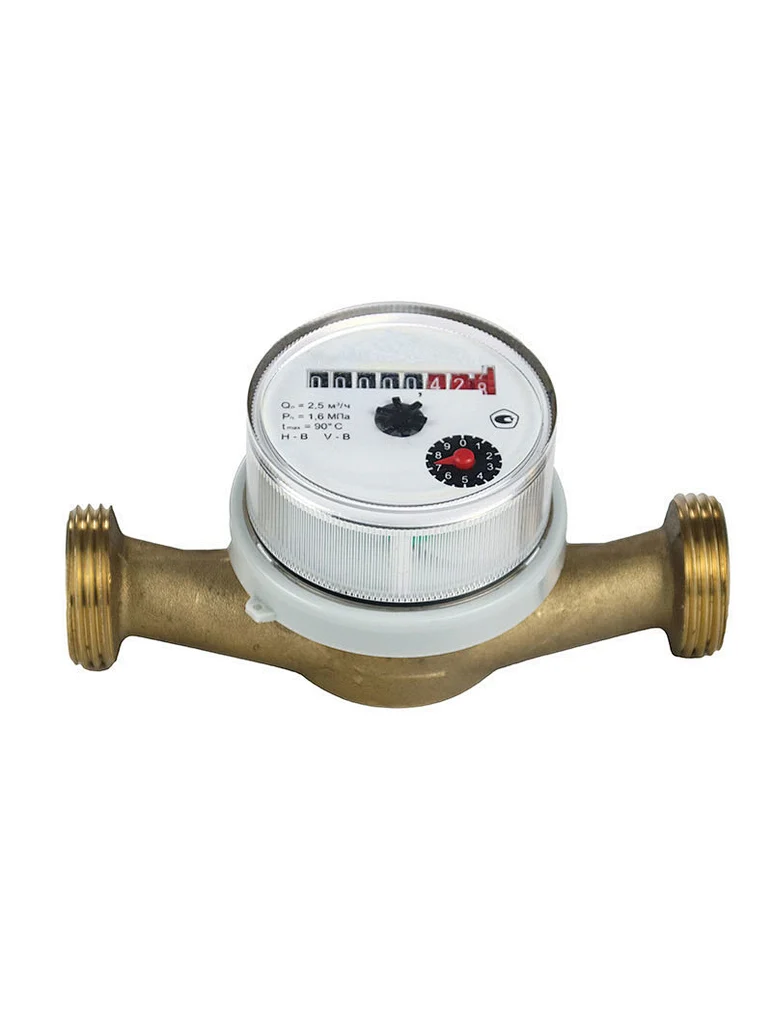

This water meter has a small and lightweight design, and uses magnetic transmission to realize the counting and testing mechanism. The counter can rotate freely 360 degrees for easy reading. It has an anti-magnetic function, which can keep the reading clear for a long time. The water meter has compact structure, high counting accuracy, small initial flow, beautiful appearance and reliable operation.
Quantity
Product introduction
This type of water meter is ideal for residential and commercial applications where space is limited. Unlike a bypass water meter, which diverts a portion of the water flow around the meter, this water meter is designed to be installed directly in the water line.
To prevent unauthorized access to the water meter, various types of water meter locks can be used. These locks can be mechanical, such as a padlock or a barrel lock, or electronic, using a smart card or a keypad. These locks can be used to secure the meter itself or the cover that provides access to the meter.
Overall, this magnetic water meter provides a convenient and reliable way to measure water usage in a variety of settings. Its high accuracy and anti-magnetic function make it an ideal choice for applications where precise measurements are required, and its small size and attractive appearance make it a popular option for residential and commercial use.
Product parameters
To prevent unauthorized access to the water meter, various types of water meter locks can be used. These locks can be mechanical, such as a padlock or a barrel lock, or electronic, using a smart card or a keypad. These locks can be used to secure the meter itself or the cover that provides access to the meter.
Overall, this magnetic water meter provides a convenient and reliable way to measure water usage in a variety of settings. Its high accuracy and anti-magnetic function make it an ideal choice for applications where precise measurements are required, and its small size and attractive appearance make it a popular option for residential and commercial use.
Product parameters

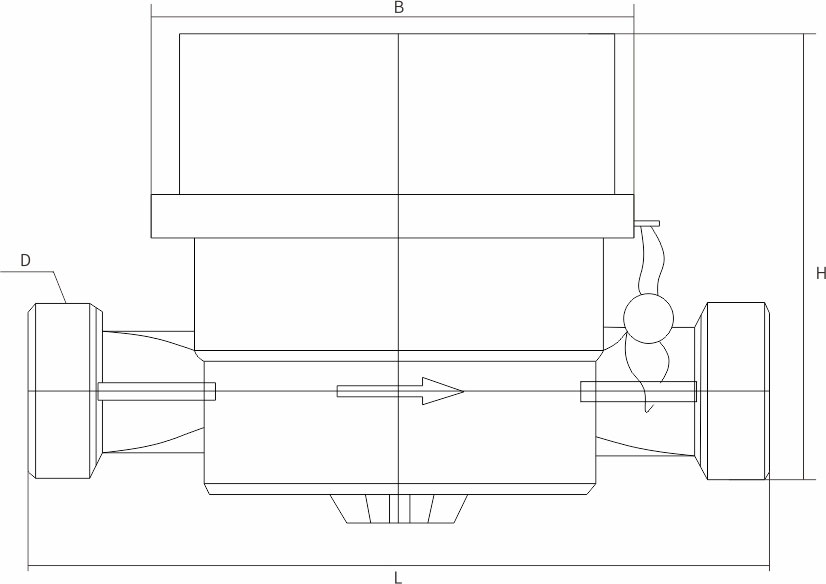

Size (mm) | Length (mm) L | Width (mm) w | Height (mm) H | Connecting Thread D |
15 | 80/110 | 65 | 67 | G3/4B |
20 | 130 | 65 | 67 | G1B |
Nominal Size DN(mm) | Overload Flow-rate qs(m3/h) | Permanent Flow-rate qp(m3/h) | Q3/Q1 | Transitional Flow-rate qt(l/h) | Minimum Flow-rate qmin(l/h) |
15 | 3.125 | 2.5 | 80 | 50 | 31.25 |
100 | 40 | 25 | |||
125 | 32 | 20 | |||
160 | 25 | 15.63 | |||
20 | 5 | 4 | 80 | 80 | 50 |
100 | 64 | 40 | |||
125 | 51.2 | 30 | |||
160 | 40 | 25 |
