Singe Jet Dry Type Vane Wheel Remote With Impulse Output Plastic Water Meter

Model NO. SJ-DR-PL1

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

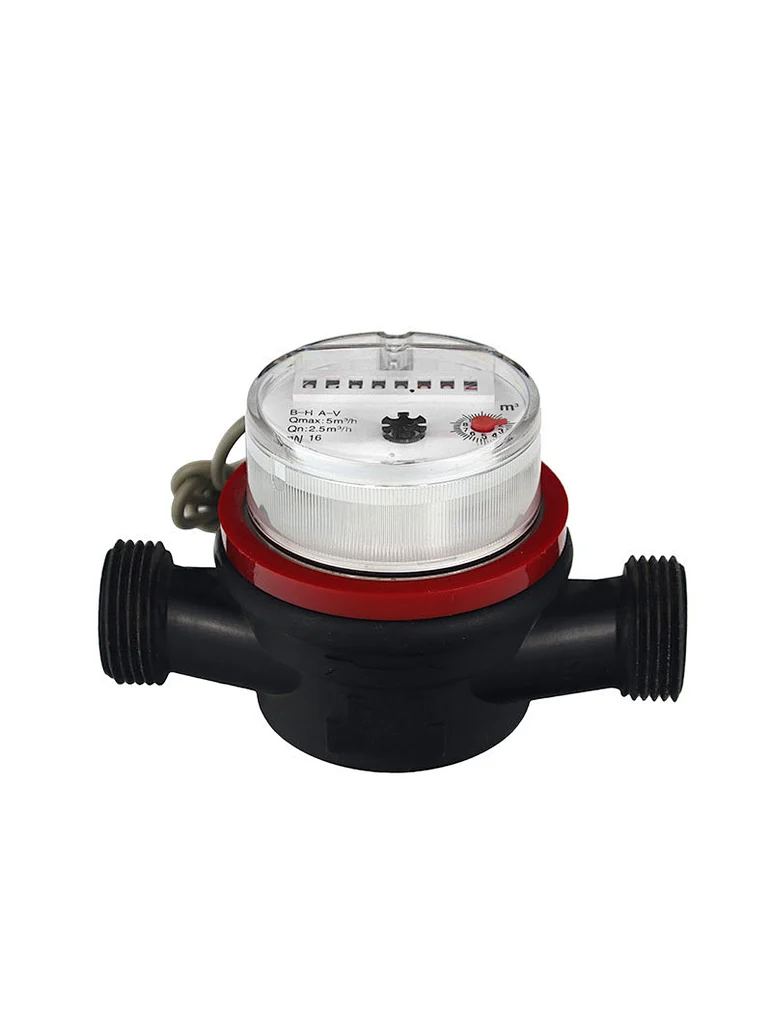

Singe Jet Dry Type Vane Wheel Remote With Impulse Output Plastic Water Meter is small in size and light in weight. The counting mechanism and testing mechanism are driven by magnetism. The counter can rotate freely at 360 degrees for easy reading. The water meter has antimagnetic effect and can keep the reading clear for a long time. Compact structure, high counting accuracy, small starting flow, beautiful appearance and reliable operation.

Quantity

Singe Jet Dry Type Vane Wheel Remote With Impulse Output Plastic Water Meter

Product introduction

Water meters play a crucial role in monitoring and measuring water usage in households, commercial buildings, and industrial settings. Our company offers a wide range of water meters, including the Single Jet, Dry Type, Vane Wheel, Remote with Impulse Output, and Plastic Water Meter, catering to diverse needs.

The Single Jet water meter operates using a single water jet that propels a turbine. As the turbine rotates, it drives a register, accurately measuring the volume of water flowing through it. This design ensures reliable and precise water consumption readings.

The Dry Type water meter is a variation of the Single Jet meter specifically designed for areas with low-quality water. It functions without any liquid sealing, making it suitable for challenging water conditions. Its innovative design allows it to operate efficiently and accurately despite the absence of liquid sealing.

The Vane Wheel water meter employs a wheel equipped with multiple vanes, which rotates as water flows through it. By measuring the number of rotations, the meter determines the amount of water consumed, providing an accurate measurement of usage.

The Remote with Impulse Output water meter is an advanced option equipped with a sensor that generates digital output signals. This feature makes it ideal for remote monitoring, allowing users to easily and conveniently track water consumption without physically accessing the meter.

The Plastic Water Meter is a lightweight and cost-effective alternative for water measurement. Constructed using durable plastic materials, it withstands harsh weather conditions effectively. However, it is important to note that this type of meter is vulnerable to damage in freezing temperatures, which can result in a common issue known as the water meter frozen problem.

When the water meter freezes, the water inside solidifies, leading to a malfunctioning mechanism. This problem can cause inaccurate readings, water wastage, and inflated bills. To prevent such issues, it is crucial to shield the water meter from extreme cold temperatures and ensure proper insulation to maintain its optimal functioning.

Our diverse range of water meters caters to various needs, offering reliable and accurate measurements for efficient water management. Additionally, by taking necessary precautions to prevent the water meter frozen problem, users can ensure uninterrupted performance and avoid unnecessary expenses.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	80/110	70	70	G3/4B
20	130	70	70	G1B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.63
20	5	4	80	80	50
			100	64	40
			125	51.2	30
			160	40	25
