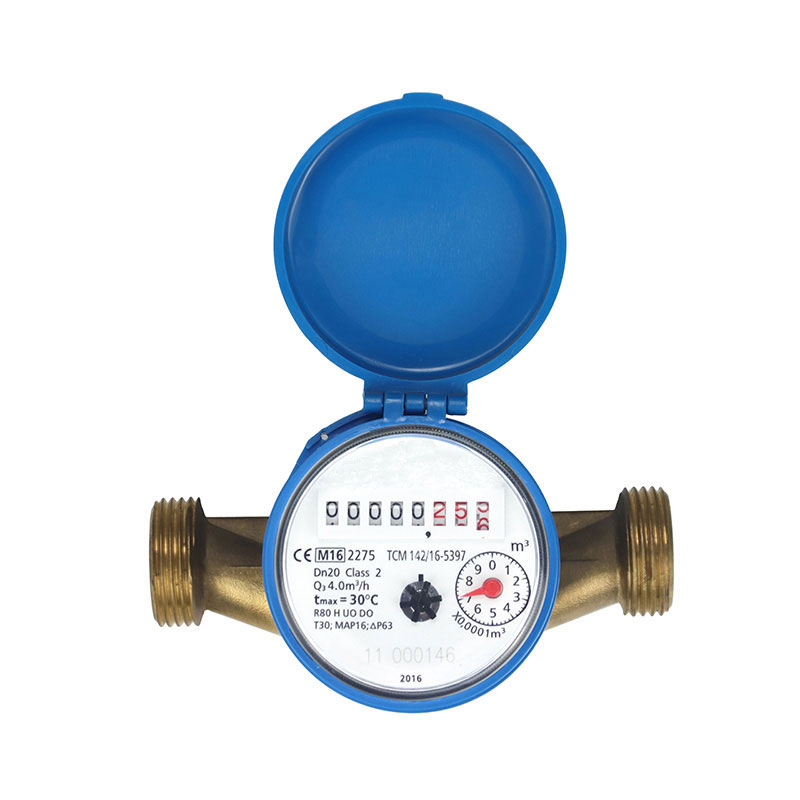

Singe Jet Dry Type Vane Wheel Water Meter
SJ-D-B1
FOB
3000set / Day
Ningbo
30Day
The counting mechanism and testing mechanism of this water meter are connected by magnetic transmission, and have a 360-degree free-rotating counter, which is convenient for users to read. The water meter has anti-magnetic function, which can keep the reading clear for a long time. Compact structure, high counting accuracy, small initial flow, beautiful appearance, reliable operation, small size and light weight.
Quantity
Singe Jet Dry Type Vane Wheel Water Meter
Product introduction
A water meter is a device used to measure the amount of water used by a household or business. Unlike a gas meter, which measures the volume of gas consumed, a water meter calculates the volume of water flowing through it. Both water meters and gas meters typically use mechanical counting mechanisms, although some modern models may use digital displays or wireless transmission of data. However, gas meters are typically not designed to be anti-magnetic like water meters, as gas is not affected by magnetic fields in the same way that water is. Additionally, gas meters may have different initial flow rates and accuracy requirements due to the unique properties of gas as compared to water. Despite these differences, both water meters and gas meters play a critical role in accurately measuring and billing for the consumption of vital resources.
A water meter is a device used to measure the amount of water used by a household or business. Unlike a gas meter, which measures the volume of gas consumed, a water meter calculates the volume of water flowing through it. Both water meters and gas meters typically use mechanical counting mechanisms, although some modern models may use digital displays or wireless transmission of data. However, gas meters are typically not designed to be anti-magnetic like water meters, as gas is not affected by magnetic fields in the same way that water is. Additionally, gas meters may have different initial flow rates and accuracy requirements due to the unique properties of gas as compared to water. Despite these differences, both water meters and gas meters play a critical role in accurately measuring and billing for the consumption of vital resources.
Product parameters

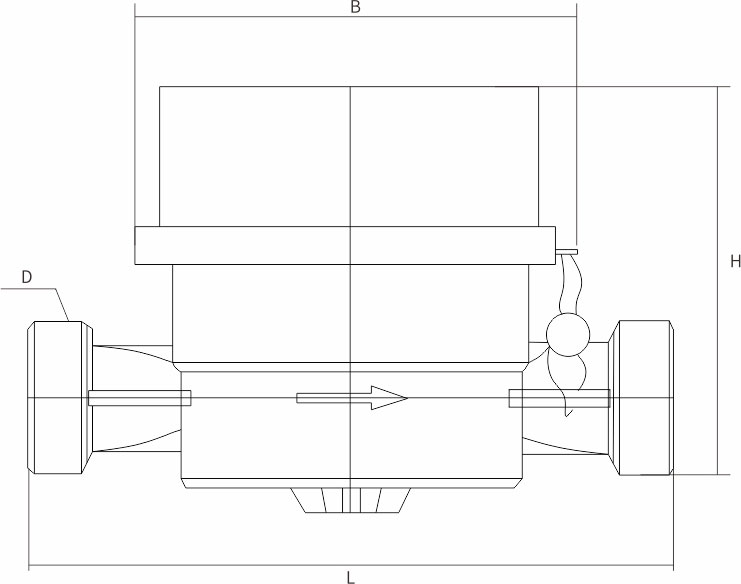

Size (mm) | Length (mm) L | Width (mm) w | Height (mm) H | Connecting Thread D |
15 | 80/110 | 70 | 70 | G3/4B |
20 | 130 | 70 | 70 | G1B |
Nominal Size DN(mm) | Overload Flow-rate qs(m3/h) | Permanent Flow-rate qp(m3/h) | Q3/Q1 | Transitional Flow-rate qt(l/h) | Minimum Flow-rate qmin(l/h) |
15 | 3.125 | 2.5 | 80 | 50 | 31.25 |
100 | 40 | 25 | |||
125 | 32 | 20 | |||
160 | 25 | 15.63 | |||
20 | 5 | 4 | 80 | 80 | 50 |
100 | 64 | 40 | |||
125 | 51.2 | 30 | |||
160 | 40 | 25 |
Click the pictures below for more information about our products，start now!
Kinhil is committed to R&D and production of various kinds of water meters, including accurate residential water meters,smart water meters,water meter collection system & solution,water meter accessories, etc.
Looking forward to cooperating with you! Contact sales to start your inquiry about Single Jet Water Meter，Multi Jet Water Meter，Volumetric Rotary Piston Water Meter，Ultrasonic Water Meter，Ultrasonic Heat Meter，etc. (0086) 574-87990915 or send an E-mail to us!
