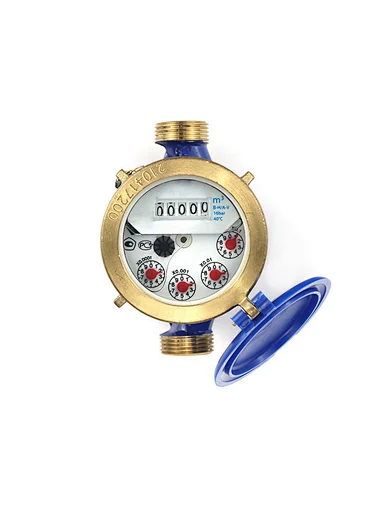

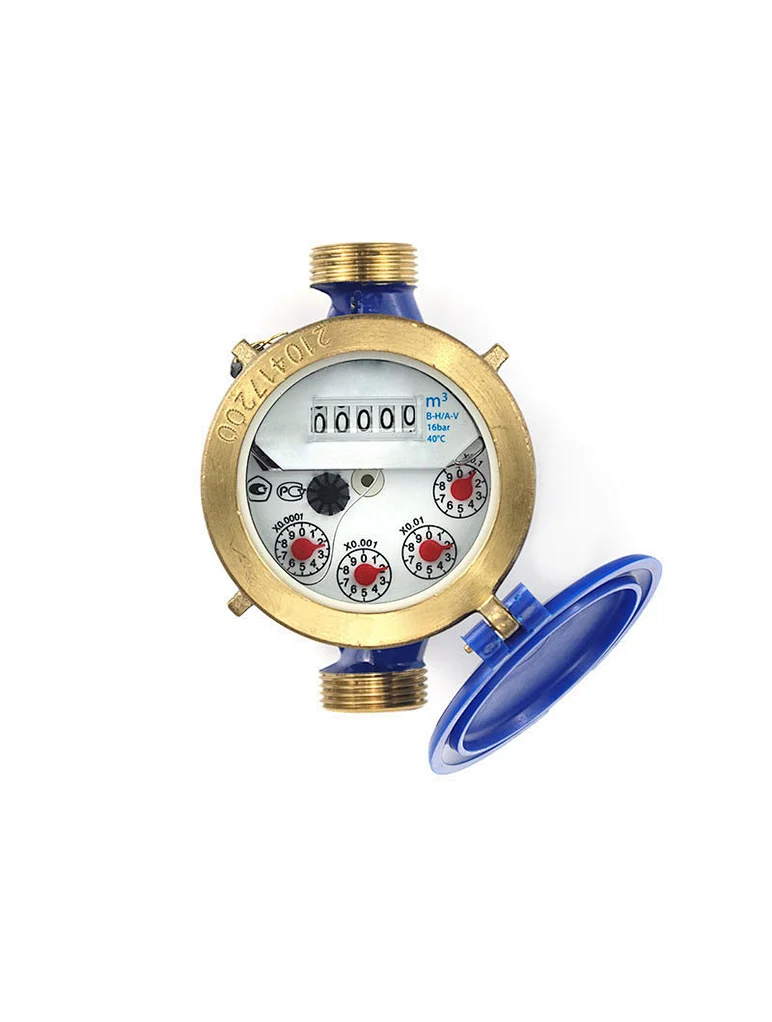

Single Jet Wet Type Liquid Sealed Vane Wheel Water Meter
SJ-W-B1
FOB
3000set / Day
Ningbo
30Day
Single Jet Wet Type Liquid Sealed Vane Wheel Water Meter is small in size and light in weight. The counting mechanism and testing mechanism are driven by magnetism. The counter can rotate freely at 360 degrees for easy reading. The water meter has antimagnetic effect and can keep the reading clear for a long time. Compact structure, high counting accuracy, small starting flow, beautiful appearance and reliable operation.
Quantity
Product introduction
A Single Jet Wet Type Liquid Sealed Vane Wheel Water Meter is a type of flow meter commonly used to measure the volume of water passing through a pipe. It works by utilizing a vane wheel which rotates as water flows through the meter. The rotation of the vane wheel is then translated into a volume measurement, which can be read on the meter's display.
Compared to a Multijet Water Meter, which uses multiple jets to measure the flow of water, a Single Jet meter is simpler and less expensive to manufacture. However, it may not be as accurate as a Multijet meter in certain situations, such as when the water flow is low or irregular.
Frozen water meters are a common issue in colder climates, where the water inside the meter can freeze and damage the internal components. To prevent this from happening, some water meters are designed with insulation or heating elements, or are installed in heated enclosures. Additionally, it is important to ensure that the meter is installed in a location that is protected from extreme temperatures and weather conditions.
Product parameters

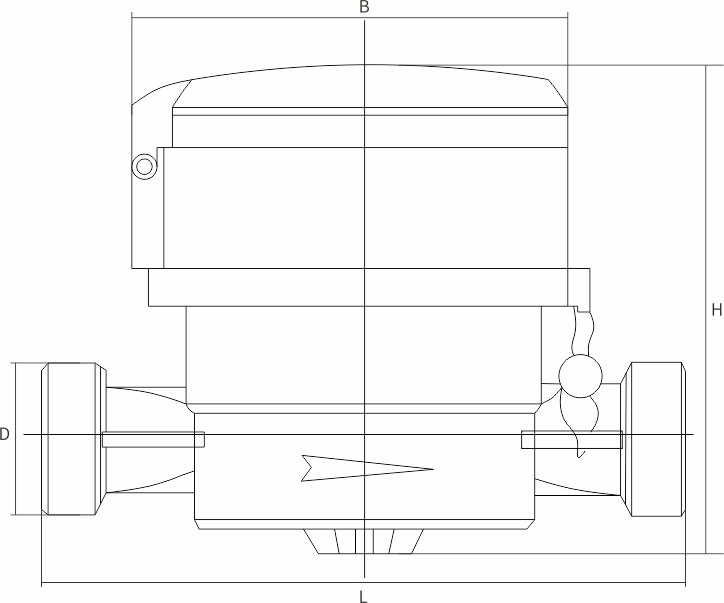

Size | Length | Width | Height | Connecting |
15 | 110 | 84 | 90 | G3/4B |
20 | 130 | 84 | 90 | G1B |
Nominal | Overload | Permanent | Q3/Q1 | Transitional | Minimum |
15 | 3.125 | 2.5 | 80 | 50 | 31.25 |
100 | 40 | 25 | |||
125 | 32 | 20 | |||
160 | 25 | 15.63 | |||
20 | 5 | 4 | 80 | 80 | 50 |
100 | 64 | 40 | |||
125 | 51.2 | 30 | |||
160 | 40 | 25 |
