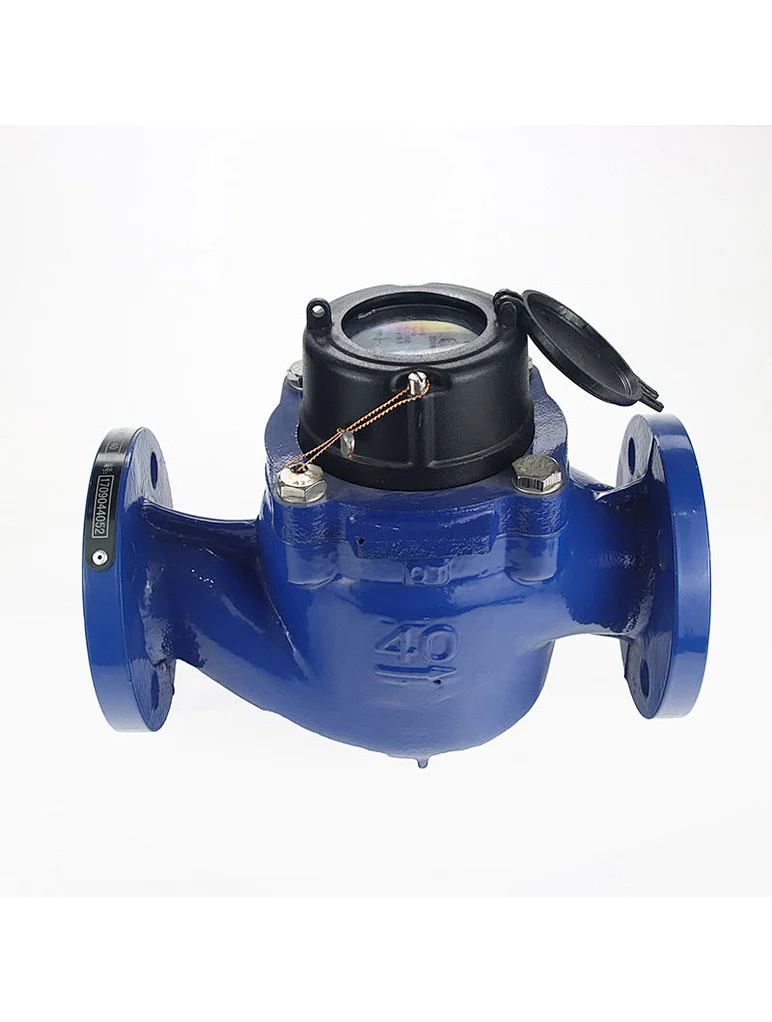

Vertical Spiral Wing Detachable Removable Water Meter

reads and interprets electric and water meter readings

Vertical Spiral Wing Detachable Removable Water Meter

Model NO. WT-V1

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

This vertical spiral wing detachable removable water meter has multiple advantages. Firstly, it features a detachable core structure for easy maintenance. Secondly, it has a wide range suitable for environments with significant changes in flow rate. The copper-sealed counter and IP68 waterproof rating effectively prevent fogging, while the internal adjustment structure prevents unauthorized adjustments. The high-wear bearing system ensures product stability and reliability, and can significantly improve maximum flow rate. In addition, the use of advanced thermal spray technology in the industry can improve the anti-corrosion ability of the casing and extend its service life. Finally, this flowmeter can be equipped with a non-magnetic sensor electromechanical conversion module and has RS-485 or M-BUS standard interface.

Quantity

Vertical Spiral Wing Detachable Removable Water Meter

Product introduction

This vertical spiral wing detachable removable water meter uses advanced coil or Hall sampling technology to accurately quantify magnetic or non-magnetic sensing signals, ensuring absolute accuracy of electromechanical conversion. With a high precision of up to 10 liters, it can capture real-time water usage data and perform analysis, enabling you to better understand your water usage. Additionally, it has multiple practical alert functions for tamper, impurity interference, low battery, and abnormal water usage, which can remind you to take action in a timely manner, avoiding unnecessary losses. The water meter adopts a split design, and the electronic unit can be replaced independently. The battery has a lifespan of more than two years, and after being sealed with automatic glue equipment, its protection level reaches IP68, making it very suitable for long-term use. Moreover, you can choose the telecommunications mobile or China Unicom NB-loT network, which has a wide signal coverage and good communication stability, allowing you to use it with peace of mind.

The vertical spiral wing detachable removable water meter should be installed horizontally with the head facing upward, ensuring that it is filled with liquid for measurement. A straight pipe section with a length three times the diameter of the pipe must be provided in front of the flow meter.

Product parameters

Size	Length L	Height			Flange
Size	Length L	G	H	h	D	D1
mm					mm
40	280	268	228	85	150	110
50	280	268	228	85	165	125
80	370	344	282	103	200	160
100	370	350	303	114	220	180
150	500	565	430	155	285	240
200	500	681	505	190	340	295

Nominal Size	Flow Range		Overload Flow-rate Q₄	Permanent Flow-rate Q₃	Transitional Flow-rate Q₂	Minimum Flow-rate Q₁	Min Reading	Max Reading
mm	Q₃Q₁	Q₂Q₁	m³/h		L/h		m³
40	200	1.6	50	40	1.28	0.8	0.005	99999
50	200	1.6	50	40	1.28	0.8	0.005	99999
80	200	1.6	80	63	0.51	0.32	0.005	99999
100	200	1.6	125	100	0.8	0.5	0.005	99999
150	200	1.6	312	250	2	1.25	0.005	99999
200	200	1.6	500	400	3.2	2	0.005	99999
