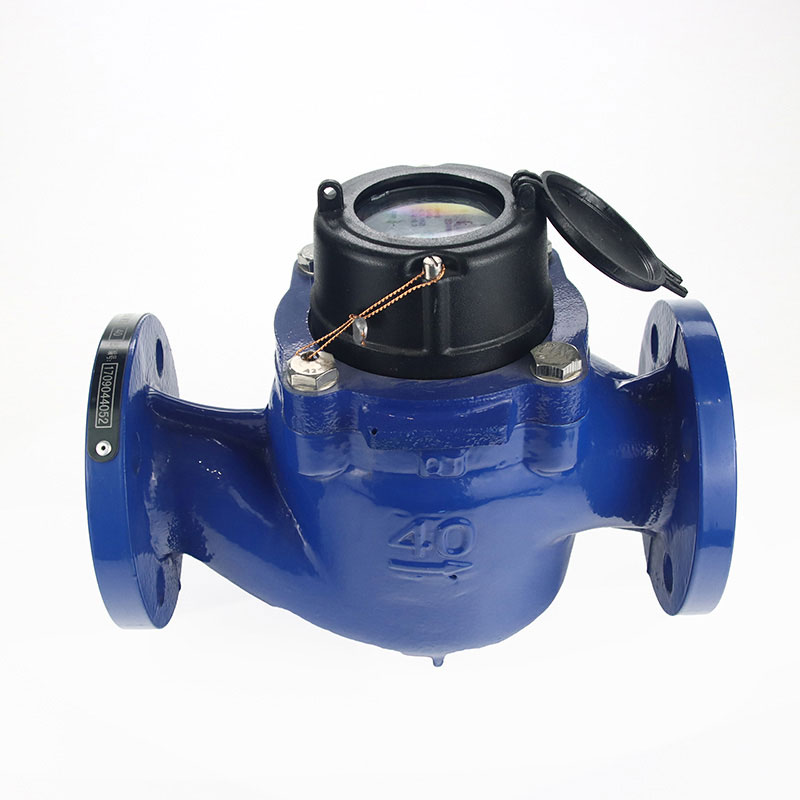

Vertical Spiral Wing Type Water Meter Price 50mm Water Flow Meter

Model NO. SM-WT-V001

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

Vertical Spiral Wing Type Water Meter is an advanced water meter technology designed to enhance accuracy and remote monitoring capabilities. This type of water meter employs a vertical helical design to elevate the functionality and efficiency of water meters to a new level.

Quantity

Vertical Spiral Wing Type Water Meter Price 50mm Water Flow Meter

First and foremost, the vertical helical remote reading water meter boasts exceptional accuracy. It utilizes high-precision sensors to measure water flow, ensuring the accuracy of water billing calculations. Compared to traditional water meters, this design eliminates the potential wear and malfunctions associated with mechanical measuring devices, thus maintaining excellent performance over long-term use.

Secondly, the vertical helical remote reading water meter comes equipped with remote monitoring capabilities. Through built-in communication technology, the water meter can transmit real-time water flow data to the water utility company's servers, enabling the remote monitoring of water usage for each meter. This not only enhances the management efficiency of water utility companies but also allows for the rapid detection of potential water leaks, reducing waste and losses.

Additionally, the vertical helical remote reading water meter includes tamper-proof and data security features. It employs advanced encryption technology to ensure the confidentiality and integrity of water meter data, preventing data from being maliciously tampered with or stolen.

In summary, the vertical helical remote reading water meter is a revolutionary technology that brings the water meter industry into a new era. Its accuracy, remote monitoring capabilities, and data security make it an ideal choice for water utility companies, improving water management efficiency, reducing waste, and providing better water services to customers. This innovative water meter technology is expected to continue evolving and improving in the future, offering more convenience and sustainability in our water resource management.

Application
Water Metering for Applications with Significant Flow Rate Variability.

Features
*Detachable Core Structure for Easy Maintenance.
*Wide Range Capabilities, Suitable for Applications with Significant Flow Rate Variations.
*Utilizing copper-sealed counter, IP68 waterproof rating, preventing surface fogging.
*Internal Adjustment Mechanism, Effectively Preventing Unauthorized Meter Tampering.
*Highly Wear-Resistant Bearing System Ensures Product Stability and Reliability, Significantly Enhancing Maximum Flow Rate.
*Utilizing state-of-the-art thermal spray coating technology in the industry to maximize the corrosion resistance of the meter housing, extending its service life.
*Compatible with non-magnetic sensor-electric conversion module, equipped with RS-485 or M-BUS standard interface.

Features of the Communication Central Remote Controller

*Utilizing coil sampling or Hall sensor sampling technology, both magnetic and non-magnetic sensor signals can be quantitatively detected, ensuring absolute accuracy in the electromechanical conversion.
*Precise remote data transmission down to 10 liters, capable of capturing real-time water usage data for analysis; *Equipped with alarm functions for tamper resistance, impurity interference. *low power, and abnormal water usage.
*Utilizing a modular design, the entire electronic unit can be replaced independently, with a battery lifespan of over 2 years.
*Fully automatic adhesive dispensing equipment with sealed treatment, IP68 protection rating.
*Selectable Telecom/China Mobile/China Unicom NB-IoT networks with broad signal coverage, high penetration, and secure and reliable communication.

Product parameters

Size	Length L	Height			Flange
Size	Length L	G	H	h	D	D1
mm					mm
40	280	268	228	85	150	110
50	280	268	228	85	165	125
80	370	344	282	103	200	160
100	370	350	303	114	220	180
150	500	565	430	155	285	240
200	500	681	505	190	340	295

Nominal Size	Flow Range		Overload Flow-rate Q₄	Permanent Flow-rate Q₃	Transitional Flow-rate Q₂	Minimum Flow-rate Q₁	Min Reading	Max Reading
mm	Q₃Q₁	Q₂Q₁	m³/h		L/h		m³
40	200	1.6	50	40	1.28	0.8	0.005	99999
50	200	1.6	50	40	1.28	0.8	0.005	99999
80	200	1.6	80	63	0.51	0.32	0.005	99999
100	200	1.6	125	100	0.8	0.5	0.005	99999
150	200	1.6	312	250	2	1.25	0.005	99999
200	200	1.6	500	400	3.2	2	0.005	99999
