Water Meter Parts Diagram and Connector Fitting
KH-WMK003
FOB
3000set / Day
Ningbo
30Day
This diagram provides a comprehensive view of the water meter's structure, encompassing the various internal components and connector fittings, along with their precise locations and interrelationships within the meter. It offers users vital insights into the operational principles and assembly procedures of the water meter.
Quantity
Water Meter Parts Diagram and Connector Fitting
 |
This diagram provides a comprehensive view of the water meter's structure, encompassing the various internal components and connector fittings, along with their precise locations and interrelationships within the meter. It offers users vital insights into the operational principles and assembly procedures of the water meter.
Water Meter Parts
 |
Description
Water Meter cover: 15-600mm

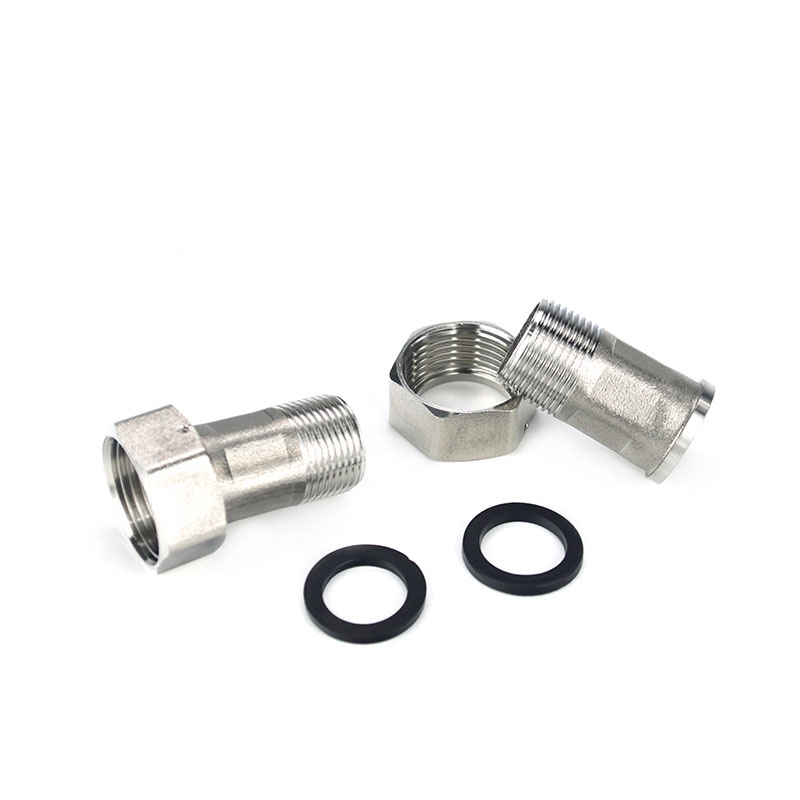

Water Meter coupling: 15, 20, 25, 32, 40, 50mm (For multi-jet & single jet & volumetric)
Water Meter flange: 50mm-600mm
Water Meter flange: 50mm-600mm
Lead-free meter fitting: 15mm-50mm
Technics: Forging, Casting， ductile
Material: Brass, Plastic, cast iron, ductile iron
Material: Brass, Plastic, cast iron, ductile iron
BSPT or NPT thread.
Meter mechanism: 15mm-600mm
Water Meter box
We produce all parts for multi jet water meters, single jet water meters, volumetric water meters, Woltman water meters, prepaid water meters, etc.
We produce all parts for multi jet water meters, single jet water meters, volumetric water meters, Woltman water meters, prepaid water meters, etc.
Specifications
Our water meter box boasts a unique locking mechanism that ensures the utmost security. It requires a tailor-made key for opening the lid, providing an additional layer of protection against unauthorized access.
Inside the meter box, you'll find unique couplings designed for hassle-free meter replacement. These couplings securely hold the meter/ballcock assembly in place, preventing rotation during installation. This feature simplifies maintenance and minimizes installation challenges.
We understand the importance of leak prevention. That's why our water meter box includes high-quality ballcock shut-off valves without rising head parts, which are known to be potential sources of leaks. You can trust that your water meter box is engineered for reliability.
Our water meter box meets strict industry standards, ensuring its reliability and accuracy. It adheres to ISO4064 Class B requirements for horizontal installation, guaranteeing the precision and consistency of your water meter readings.
Inside the meter box, you'll find unique couplings designed for hassle-free meter replacement. These couplings securely hold the meter/ballcock assembly in place, preventing rotation during installation. This feature simplifies maintenance and minimizes installation challenges.
We understand the importance of leak prevention. That's why our water meter box includes high-quality ballcock shut-off valves without rising head parts, which are known to be potential sources of leaks. You can trust that your water meter box is engineered for reliability.
Our water meter box meets strict industry standards, ensuring its reliability and accuracy. It adheres to ISO4064 Class B requirements for horizontal installation, guaranteeing the precision and consistency of your water meter readings.
Application
The meter boxes are designed to protect the water meter from unauthorized access and damage the meter boxes are suitable for use in heavy traffic situations and working conditions
Water temperature:<40℃
The meter boxes are designed to protect the water meter from unauthorized access and damage the meter boxes are suitable for use in heavy traffic situations and working conditions
Water temperature:<40℃
Diagram of Water Meter Parts
 |
