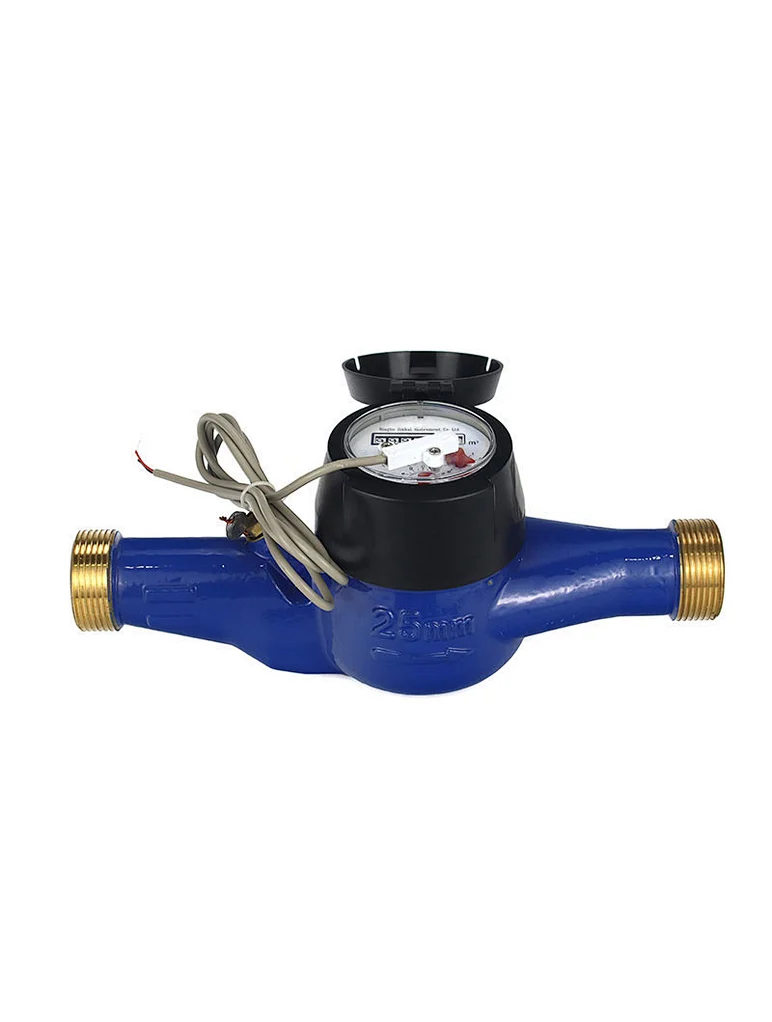

Multi Jet Dry Type Vane Wheel P Model Remote With Impulse Cold Water Meter

Model NO. MJ-DR-BPOC

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

The Multi Jet Dry Type Vane Wheel P Model water meter is equipped with a dry design, ensuring efficient functionality. It employs a magnetic transmission system that connects the impeller and counter, enabling accurate measurement. The combination of numeral wheels and pointers facilitates effortless reading, enhancing user convenience.

Quantity

Multi Jet Dry Type Vane Wheel P Model Remote With Impulse Cold Water Meter

Product introduction

This water meter series boasts several advantages, including a long-term clear display, ensuring that readings remain visible over extended periods. It also possesses anti-freezing properties, preventing the meter from freezing in colder temperatures, and contributing to its reliability. Additionally, the water meter exhibits a long service life, making it a durable and dependable choice for various applications.

Moreover, the meter can be customized to accommodate specific customer requirements. It can be equipped with features such as anti-external magnetic interference, which shields the meter from magnetic fields in the surrounding environment, ensuring accurate readings. Additionally, a remote pulse output function can be added, allowing for remote monitoring and data collection as per customer demands.

For water meters installed in the ground, the Multi Jet Dry Type Vane Wheel P Model provides an excellent solution. Its robust design and magnetic transmission system make it suitable for such applications, ensuring reliable and precise measurement even in challenging environments.

To read the water meter in cubic meters (m3), locate the numeral wheels and pointers on the meter. The numeral wheels display the numerical values, indicating the amount of water consumed. The pointers, in conjunction with the wheels, indicate the precise measurement. To obtain the reading, simply note the numbers displayed on the numeral wheels and consider the position of the pointers. This combination provides an accurate measurement of water consumption in cubic meters (m3).

Product parameters

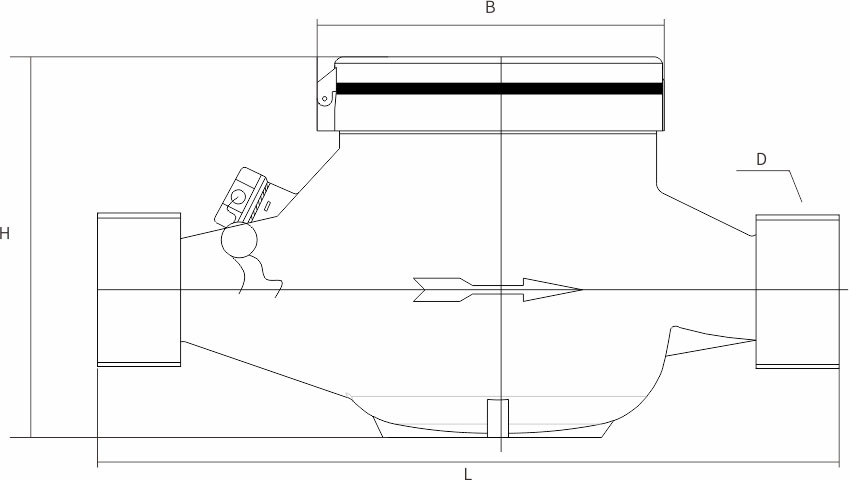

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	81	103	G 3/4B
20	195	81	103	G 1B
25	260	91	108	G 1/4B
32	260	91	110	G 1/2B
40	300	110	128	G 2B
50	300	110	128	G2 1/2B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
32	12.5	10	80	200	125
			100	160	100
			125	128	80
			160	100	62.5
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
50	31.25	25	80	500	312.5
			100	400	250
			125	320	200
			160	250	156.25
