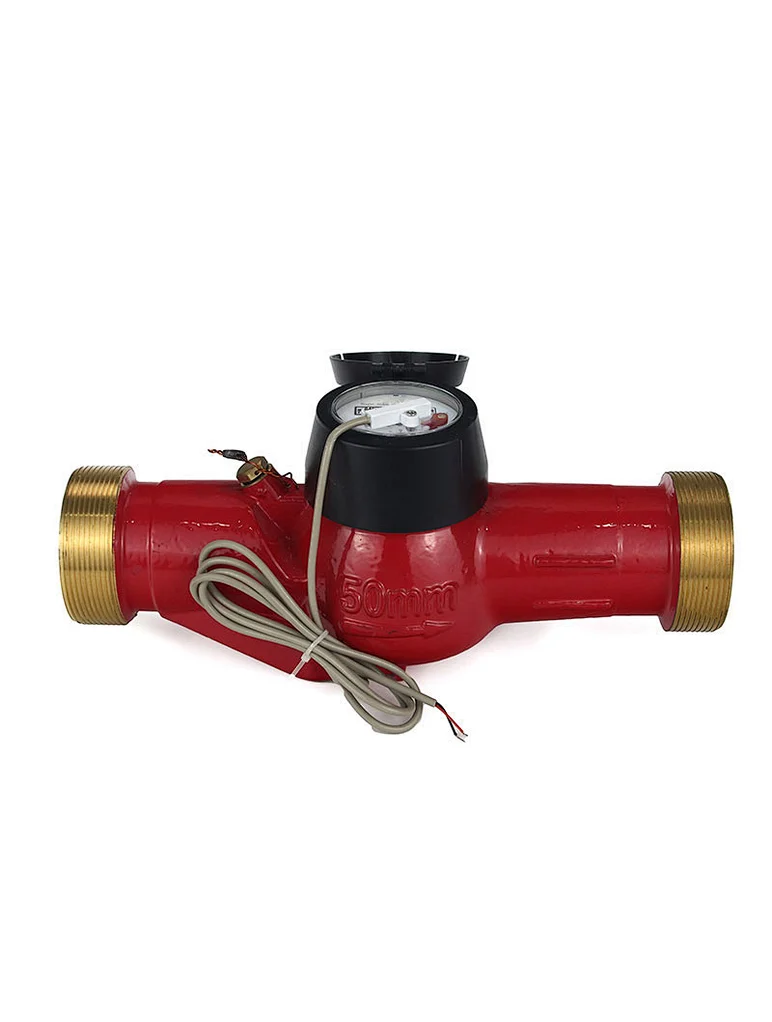

Multi Jet Dry Type Vane Wheel P Model Remote With Impulse Hot Water Meter

Model NO. MJ-DR-BPOH

Delivery FOB

Supply Ability 3000 / Day

Country of Origin Ningbo

Stock Time 30Day

This water meter series adopts a dry design, with magnetic transmission between the impeller and the counter. The combination of numeral wheels and pointers allows for easy reading, and it has advantages such as clear display for long-term use, anti-freezing, and long service life. Additionally, we can add anti-external magnetic interference and remote pulse output functions according to customer requirements.

Quantity

Multi Jet Dry Type Vane Wheel P Model Remote With Impulse Hot Water Meter

Product introduction

Multi Jet Dry Type Vane Wheel P Model Remote With Impulse Hot Water Meter series features a dry design with a vane wheel and magnetic transmission between the impeller and the counter. This design ensures accurate measurement and a long service life, making it ideal for long-term use. The water meter is also equipped with numeral wheels and pointers for easy reading, and it has anti-freezing properties that allow it to operate smoothly in cold environments.
In addition to these features, the water meter can also be equipped with anti-external magnetic interference capabilities to prevent any unwanted disruptions to its measurements. Moreover, the water meter can be equipped with a remote pulse output function, allowing for remote monitoring and data collection.
To ensure smooth operation, it is recommended to install the water meter with a bypass pipe to avoid any potential disruptions in the water flow. Overall, the Multi Jet Dry Type Vane Wheel P Model water meter series is a reliable and efficient option for measuring hot water consumption in various settings.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	81	103	G 3/4B
20	195	81	103	G 1B
25	260	91	108	G 1/4B
32	260	91	110	G 1/2B
40	300	110	128	G 2B
50	300	110	128	G2 1/2B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
32	12.5	10	80	200	125
			100	160	100
			125	128	80
			160	100	62.5
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
50	31.25	25	80	500	312.5
			100	400	250
			125	320	200
			160	250	156.25
