Multi Jet Wet Type Liquid Sealed Intelligent Base Water Meter

Model NO. SMBS-MJ-L-B1

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

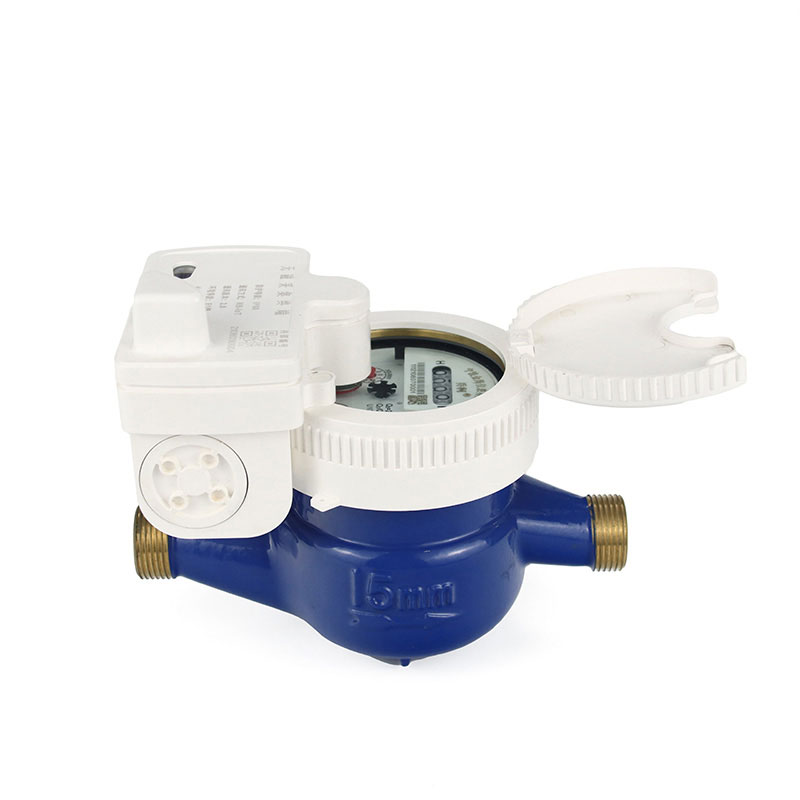

Multi-flow technology horizontal installation, measuring range. The digital wheel of the counter is encapsulated with special liquid, which can keep the reading clear for a long time ) The wireless module and the base meter adopt a split structure, plug and play.

Quantity

Multi Jet Wet Type Liquid Sealed Intelligent Base Water Meter

Product introduction

Multi-flow technology horizontal installation allows for measuring the flow rate of various fluids with precision. The measuring range of the meter is wide, and it can accurately measure both high and low flow rates. The digital wheel of the counter is not only precise but also durable, as it is encapsulated with special liquid that keeps the reading clear for a long time. The wireless module and the base meter have a split structure, which makes them easy to install and remove without the need for any specialized tools or expertise. Additionally, the water meter cover is made of sturdy cast iron, which ensures that the meter is protected from any external damage or interference. Overall, this meter is a reliable and efficient solution for measuring the flow of fluids in various industrial and residential settings.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	95	138	G 3/4B
20	190	95	138	G 1B
25	225	100	150	G1 1/4B
40	245	125	180	G 2B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
