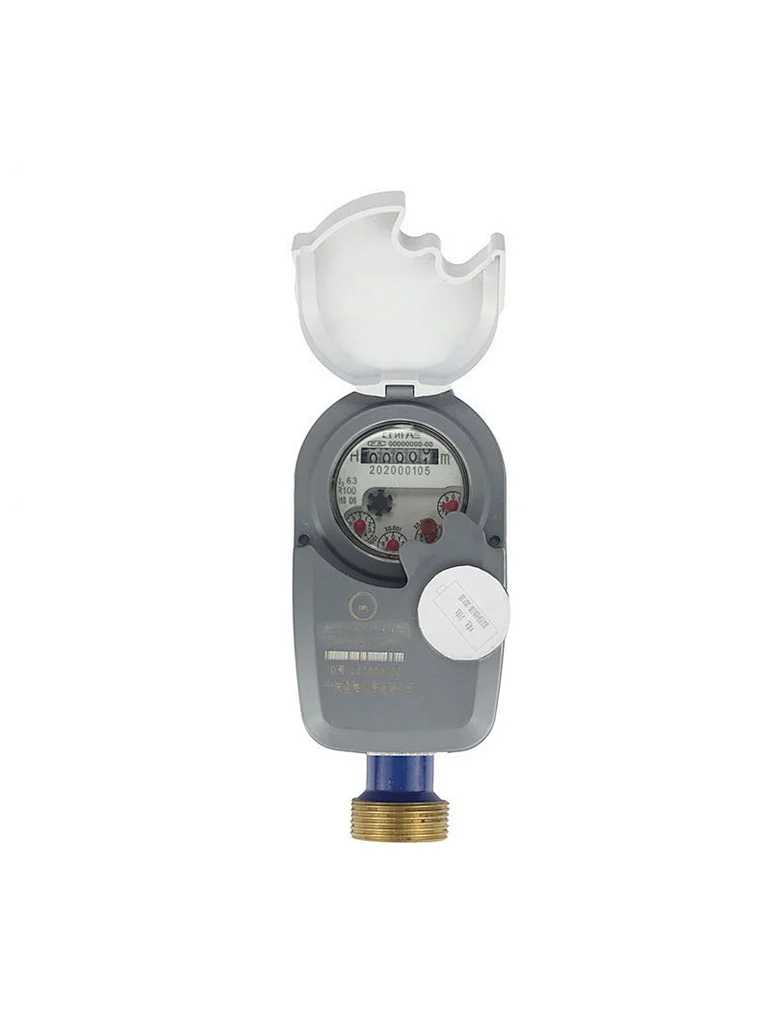

Valve Controlled Smart Water Meter

Valve Controlled Remote Intelligent Water Meter

Valve Controlled Smart Water Meter

Model NO. SM-MJ-VC

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

This product provides a variety of signal acquisition methods, including reed switch, Hall, non-magnetic, etc., to meet different application requirements. Built-in daily frozen data storage and customized freezing days function, which supports the real-time query of historical data in the remote transmission system. The product also supports timing and button triggering to actively report real-time data, supports multiple button types and waterproof design. The unique intelligent valve casting algorithm and two-wire valve control can simplify the production process and improve product reliability. In addition, the product also supports three-level monthly ladder water billing, prepaid functions and a unique recharge verification algorithm to prevent overcharging, missing charging, and repeated recharging. Low voltage alarm, valve failure alarm, arrears alarm and other functions are also supported. When an alarm occurs, the module will automatically report relevant information and real-time data, and at the same time support remote control of the valve.

Quantity

Valve Controlled Smart Water Meter

Product introduction

This product is a versatile solution for water meter monitoring, providing different signal acquisition methods to suit various application needs. It also offers daily frozen data storage and customized freezing days function, enabling remote access to historical data. The product supports real-time data reporting through timing and button triggering, with multiple button types and a waterproof design. Its intelligent valve casting algorithm and two-wire valve control simplify production and improve reliability.
Moreover, the product supports three-level monthly ladder water billing, prepaid functions, and a recharge verification algorithm to prevent overcharging and other issues. It also features various alarms, including low voltage, valve failure, and arrears, which trigger automatic reporting and support remote valve control.
If you need to replace the water meter box cover, this product may not be directly related, but it can help monitor the water usage and detect any issues that may require maintenance, including potential damage to the box cover. With its advanced features and reliable performance, this product can help optimize water management and improve overall efficiency.

Product parameters

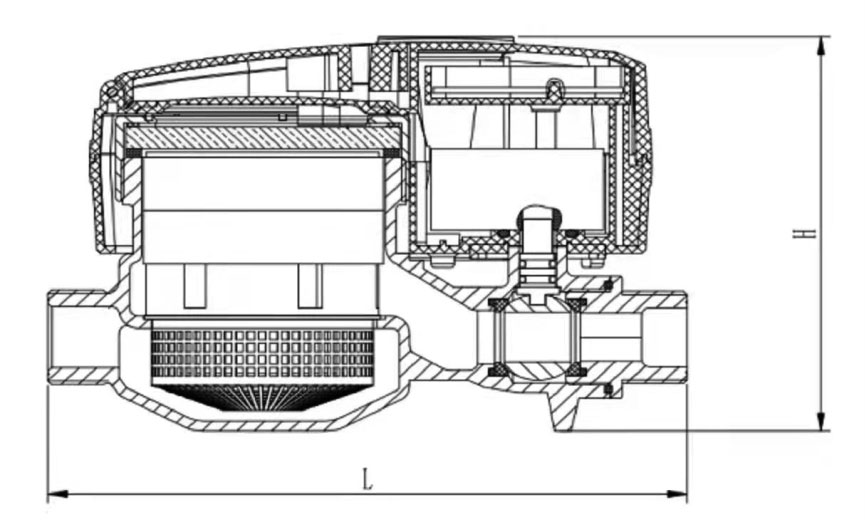

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H
15	168	95	90
20	195	95	110
25	225	95	195

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
