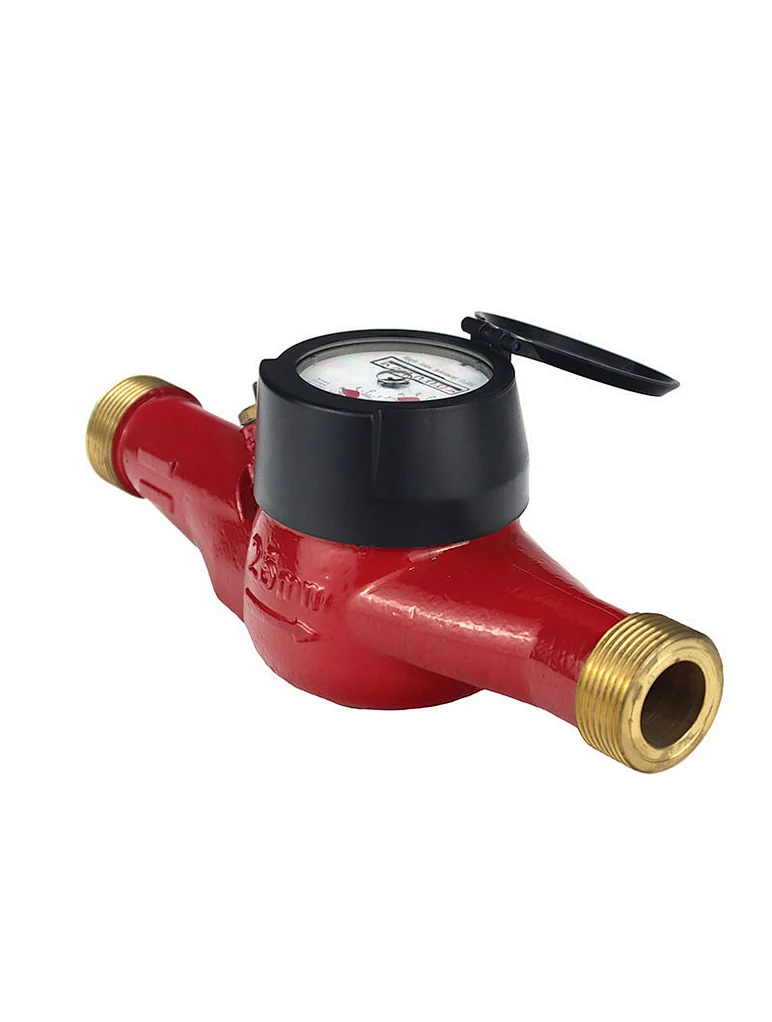

Multi Jet Dry Type Vane Wheel P Model Hot Water Meter

Model NO. MJ-D-BPOH

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

This water meter uses a dry design, with magnetic transmission connecting the impeller and counter. The numeral wheels and pointers combination allows for easy reading, and it has advantages such as clear display, anti-freezing, and long service life. Additionally, we can add anti-external magnetic interference and remote pulse output functions according to customer requirements.

Quantity

Multi Jet Dry Type Vane Wheel P Model Hot Water Meter

Product introduction

The description above appears to be referring to a specific type of water meter, the Multi Jet Dry Type Vane Wheel P Model Hot Water Meter. This type of water meter uses a dry design and magnetic transmission to connect the impeller and counter, allowing for easy reading of the numeral wheels and pointers. It also has the advantages of a clear display, anti-freezing, and long service life. Furthermore, the meter can be equipped with anti-external magnetic interference and remote pulse output functions as per customer requirements.
One important concern when it comes to water meters is the possibility of tampering. There are several methods of water meter tampering that some people may attempt to use in order to alter their water usage readings and avoid paying their bills. Some common methods include drilling a hole in the meter or manipulating the dial. However, it is important to note that tampering with a water meter is illegal and can result in serious consequences.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	81	103	G 3/4B
20	195	81	103	G 1B
25	260	91	108	G 1/4B
32	260	91	110	G 1/2B
40	300	110	128	G 2B
50	300	110	128	G2 1/2B

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
32	12.5	10	80	200	125
			100	160	100
			125	128	80
			160	100	62.5
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
50	31.25	25	80	500	312.5
			100	400	250
			125	320	200
			160	250	156.25
