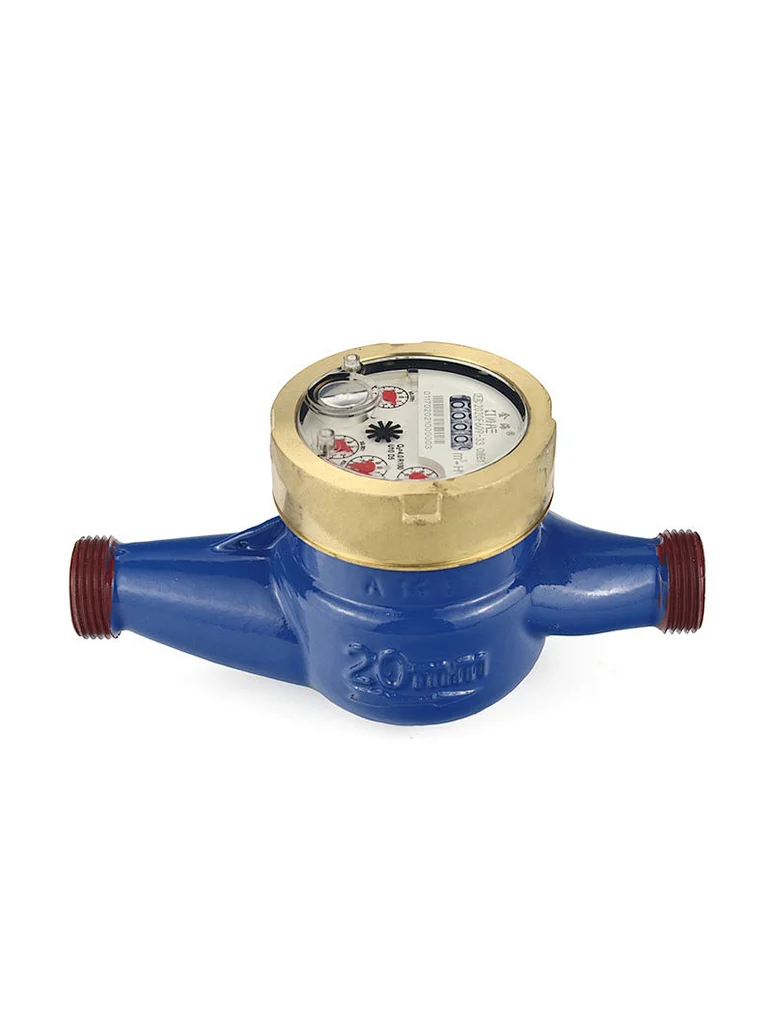

Multi Jet Wet Type Liquid Sealed Vane Wheel Iron 2 Base Water Meter

Model NO. MJ-L-IR2

Delivery FOB

Supply Ability 3000set / Day

Country of Origin Ningbo

Stock Time 30Day

This water meter is made of special wear-resistant materials, and the counting mechanism adopts special liquid packaging and high-precision pointer counting deceleration part. It has high measurement accuracy, small initial flow, good anti-pollution, convenient copying, reliable operation, and beautiful appearance. Advantages, it is the best choice for domestic water supply network.

Quantity

Multi Jet Wet Type Liquid Sealed Vane Wheel Iron 2 Base Water Meter

Product introduction

This advanced water meter utilizes special wear-resistant materials and boasts a counting mechanism that employs unique liquid packaging and a high-precision pointer counting deceleration component. As a result, it offers unparalleled measurement accuracy, with a small initial flow and excellent anti-pollution properties. Additionally, it is easy to copy and operates reliably, all while maintaining a sleek and attractive appearance.
Unlike electronic water meters that are prone to reading errors and require regular maintenance, this water meter is built to withstand the rigors of daily use, ensuring consistently accurate readings over time. With its exceptional performance and durability, this water meter is undoubtedly the ideal choice for domestic water supply networks seeking a reliable and long-lasting solution.

Product parameters

Size (mm)	Length (mm) L	Width (mm) w	Height (mm) H	Connecting Thread D
15	165	94	112.5	G 3/4B
20	195	94	104	G 1B
25	225	98	124	G1 1/4B
32	230	98	124	G1 1/2B
40	245	124	154	G 2B
50	280	165	179	GB/T17241.6-2008 D=Φ165 D1=Φ125

Nominal Size DN(mm)	Overload Flow-rate qs(m³/h)	Permanent Flow-rate qp(m³/h)	Q₃/Q₁	Transitional Flow-rate qt(l/h)	Minimum Flow-rate qmin(l/h)
15	3.125	2.5	80	50	31.25
			100	40	25
			125	32	20
			160	25	15.625
20	5	4	80	80	50
			100	64	50
			125	51.2	32
			160	40	25
25	7.875	6.3	80	126	78.75
			100	100.8	63
			125	80.6	50.4
			160	63	39.375
32	12.5	10	80	200	125
			100	160	100
			125	128	80
			160	100	62.5
40	20	16	80	320	200
			100	256	160
			125	204.8	128
			160	160	100
50	31.25	25	80	500	312.5
			100	400	250
			125	320	200
			160	250	156.25
