Vertical vs. Horizontal Water Meters: A Comprehensive Analysis

2024-09-12

Water meters are essential tools for measuring water consumption in residential, commercial, and industrial settings. They come in various configurations, including vertical and horizontal orientations. This article explores the differences between these two types of water meters, considering their application scenarios, structural design, water pressure influence, and additional factors to help you make an informed choice.

Here is the content list：
1. Application Scenarios
2. Structural Design

3. Water Pressure Influence

4. Additional Considerations

5. Choosing the Right Meter

Application Scenarios

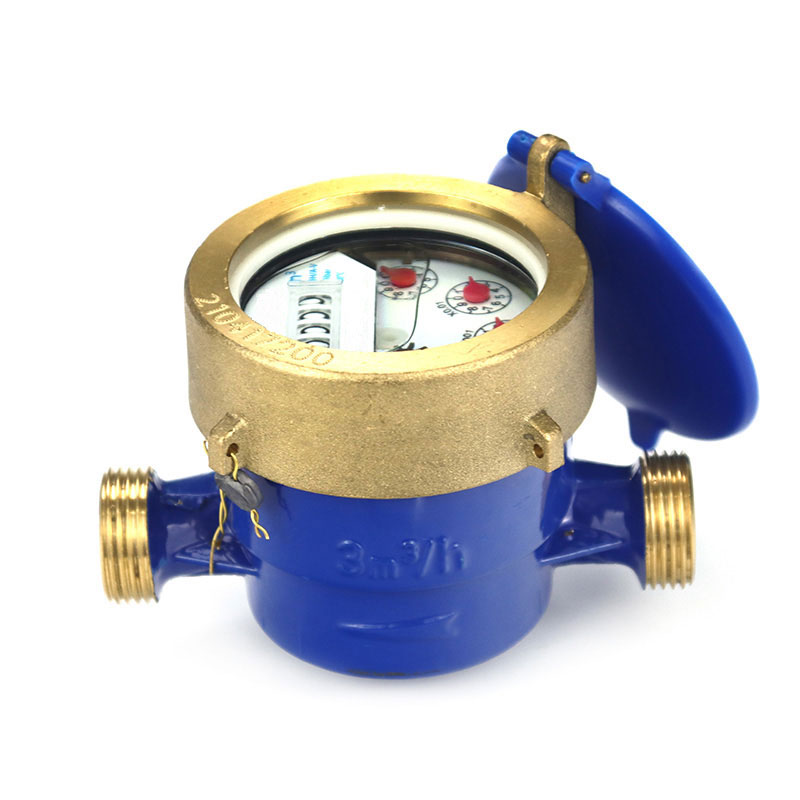

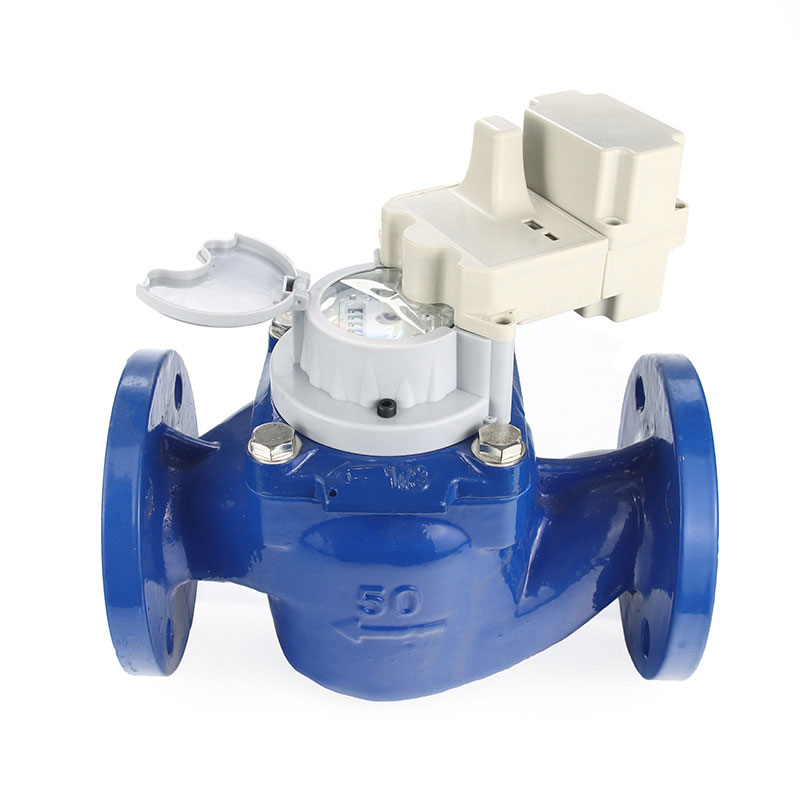

Horizontal Water Meters: These meters are designed for installation in horizontal pipes. They are commonly used in residential and commercial settings where the water supply line runs horizontally.

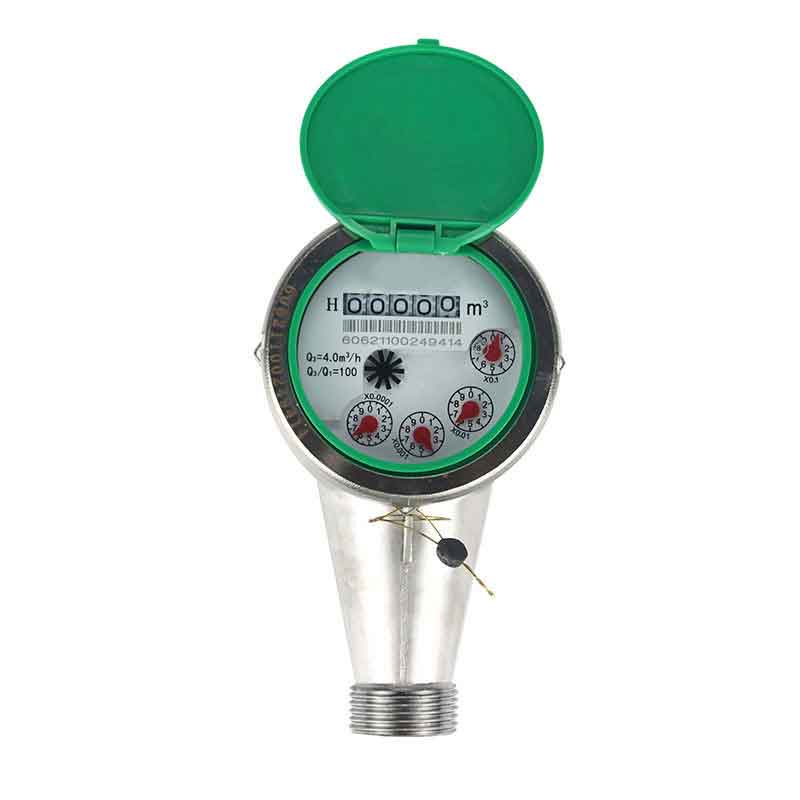

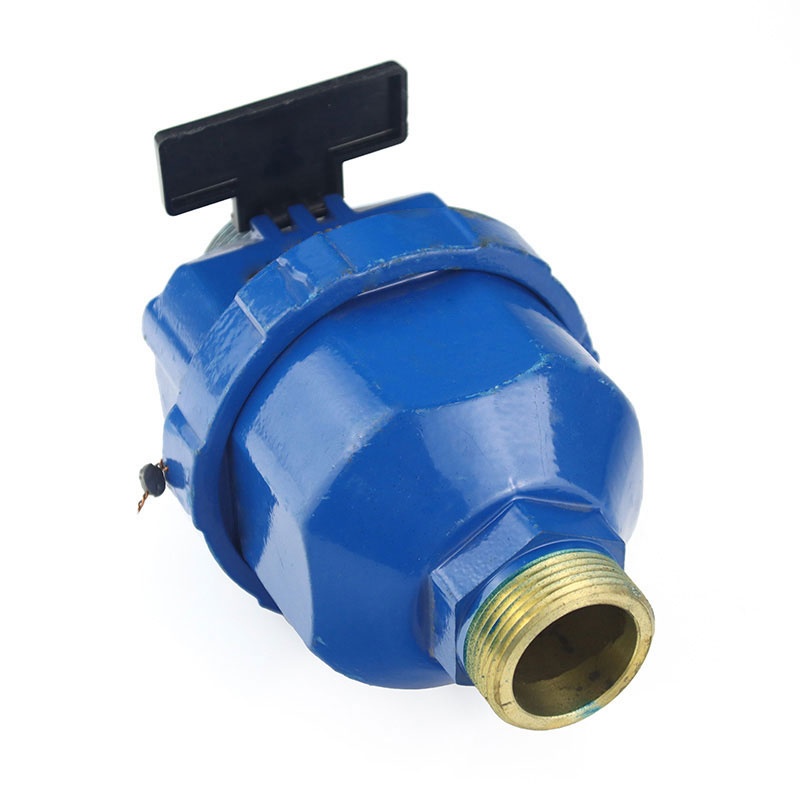

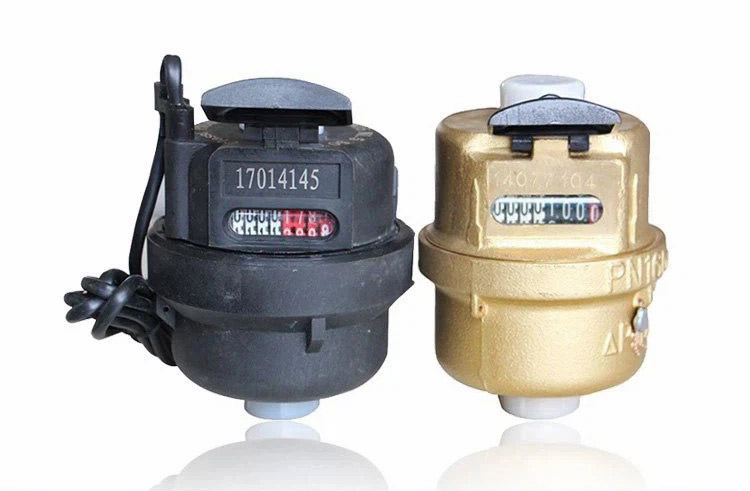

Vertical Water Meters: Designed for vertical installation, these meters are often used in situations with limited space or special pipe layouts, such as high-rise buildings or riser systems.

Structural Design

Horizontal Water Meters: Due to their horizontal installation, these meters are typically designed to measure accurately in this position, with minimal influence from gravity and water pressure. They often have a more straightforward design and may be less susceptible to certain types of errors.
Vertical Water Meters: These meters have a specialized design to maintain accurate measurement even in a vertical state. The internal structure and water flow path are adjusted to adapt to the unique characteristics of vertical flow. This can make them more complex to manufacture and install.

Water Pressure Influence

Horizontal Water Meters: The influence of water pressure on horizontal meters is relatively stable due to their installation orientation. This means that fluctuations in water pressure are less likely to affect the meter's accuracy.
Vertical Water Meters: Water pressure can change along the height of a vertical pipe, potentially affecting the meter's accuracy. It is essential to consider this factor when selecting and installing a vertical meter. In some cases, additional measures may be necessary to compensate for pressure variations.

Additional Considerations

Space Constraints: Vertical meters may be more suitable for limited spaces, as they require less horizontal space for installation.
Pipe Layout: The orientation of your water supply lines will determine the appropriate meter type.
Maintenance Access: Ensure easy access for meter readings and maintenance, regardless of the meter's orientation.
Local Regulations: Check with your local water utility for any specific requirements or recommendations regarding meter orientation.

Choosing the Right Meter
By carefully considering these factors, you can select the most suitable water meter for your specific application. If you have any doubts or questions, consult with a water professional or your local water utility for expert advice. Remember, the correct meter orientation is essential for accurate water measurement and efficient water management.
